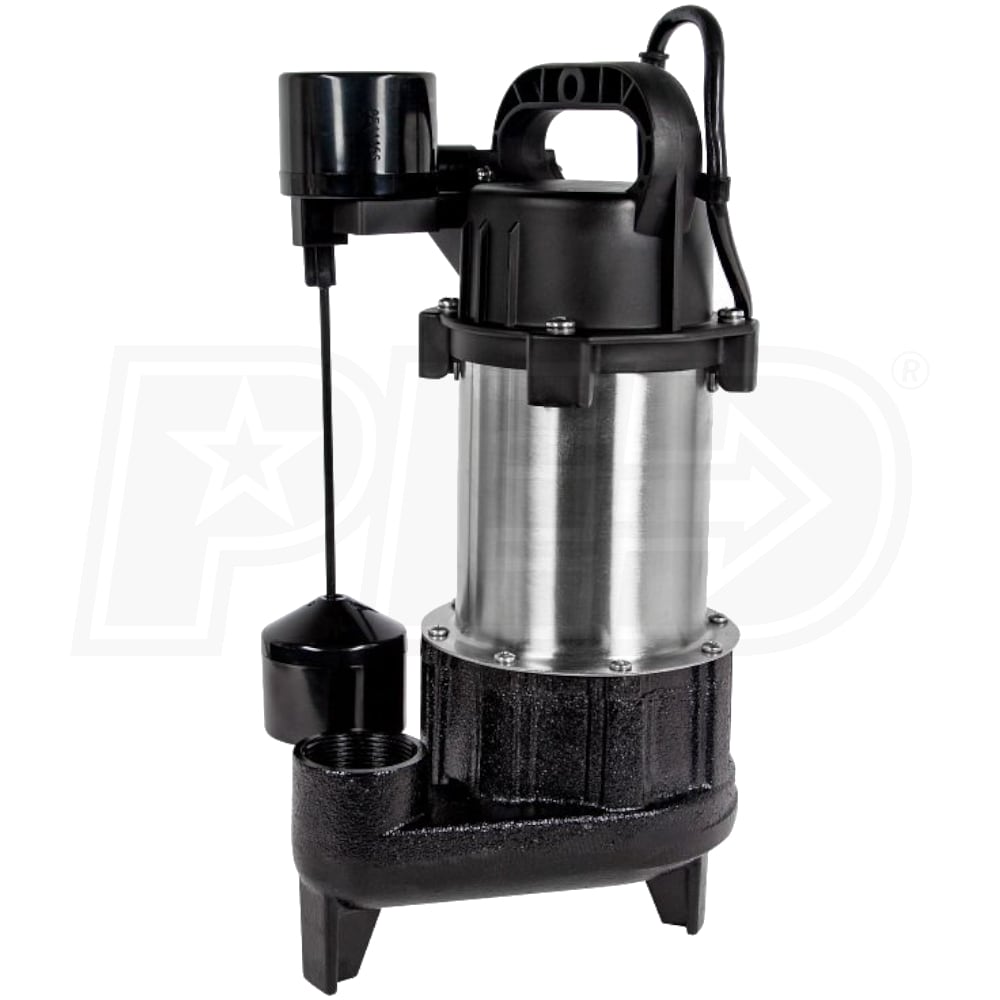

Little Giant 16EC-SSA-V - 1 HP Stainless Steel / Cast Iron Effluent Pump w/ PB Vertical Float

Model:

14942785

Write A Review
$133.14
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601
Little Giant 16EC-SSA-V - 1 HP Stainless Steel / Cast Iron Effluent Pump w/ PB Vertical Float
Little Giant 16EC-SSA-V - 1 HP Stainless Steel / Cast Iron Effluent Pump w/ PB Vertical Float
Model: 14942785
$133.14
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

5298 Gallons

Switch Type

Vertical

  • Little Giant 16EC-SSA-V - 1 HP Stainless Steel Auto Effluent Pump
  • Continuous duty rated for sump & light effluent applications
  • Stainless Steel Motor Housing w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (8-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Piggyback Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Turns On at 9.5"-11.5" and turns Off at 3.5"-5.5"
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 3/4" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel motor shaft, screws and bolts
  • 10-Foot Power Cord
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

14942785
specs product image PID-153887
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Stainless Steel
Impeller Material
Composite
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
5298
GPH @ 5 feet
4800
GPH @ 10 feet
4320
GPH @ 15 feet
3600
GPH @ 20 feet
3000
Discharge Port Size
1-1/2 Inch
Float On
9.5-11.5
Float Off
3.5-5.5
Manual Override
Yes
Max Head
30 Feet
Submersible
Yes
Engine
Horsepower
1 HP
Overview
Product Category
Sump Pump
Weight
29.8 Pounds
Consumer Warranty
3 Years
Product Length
8.9 Inches
Product Width
8.4 Inches
Product Height
11 Inches
UPC
0010121016422
