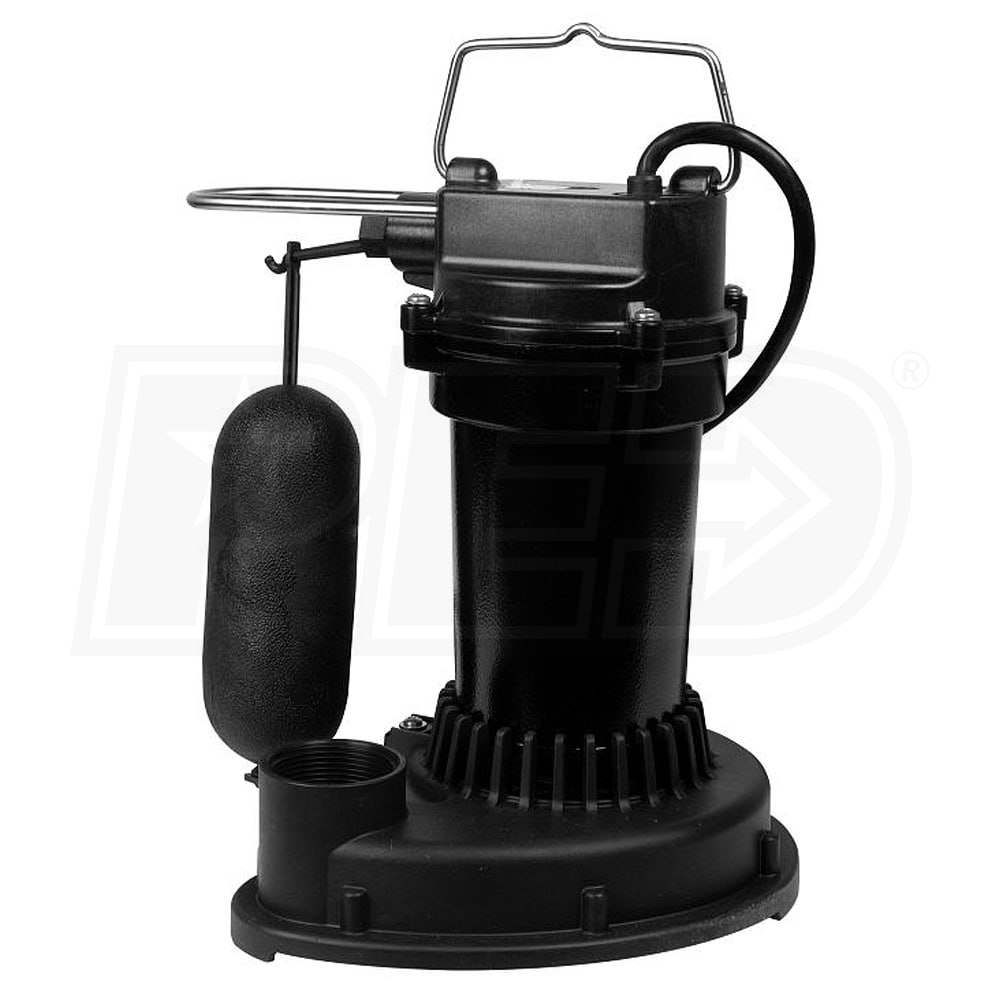

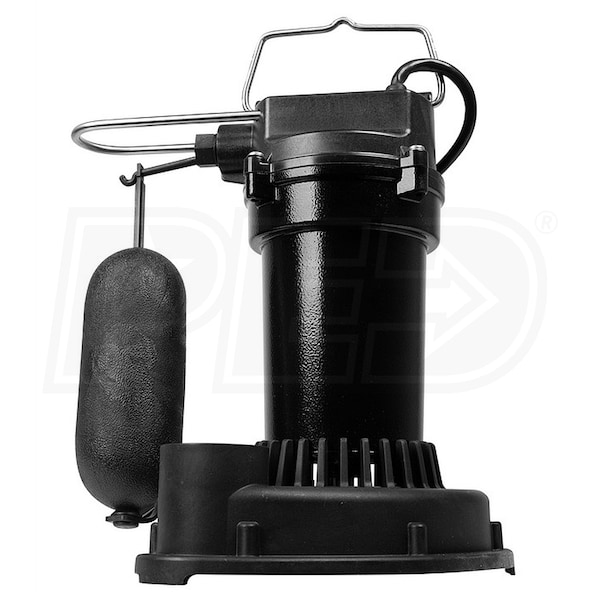

Little Giant 5.5-ASPA - 1/4 HP Submersible Sump Pump (25' Cord) w/ Vertical Float Switch
Model:
505703
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
2400 Gallons
Switch Type
Vertical
- Zinc housing, polypropylene volute for corrosion resistance
- Automatic Submersible Sump Pump
- Great for light sump & light effluent applications
- UL / CSA listed
- Polypropylene Base w/ Alumunium Pump Housing
- Multiple power cord lengths available
- Minimizes rust & corrosion to extend overall pump life
- Integral snap action float switch
- 1/4 HP Shaded Pole Motor w/ Thermal Overload Protection
- 7"-10"( 17.8cm-25.4cm ) On-level and 2"-5" ( 5cm-12.7cm ) Off-level
- Provides added protection to keep your pump running
- 3 / 4" garden hose adapter included
- Integral Snap-Action Vertical Float Switch
- 1 / 4 HP shaded pole motor with overlaod protection
- Double-seal design minimizes switch corrosion
- Our SKU number(s): Little Giant 505700
- The manufacturer model number(s): Little Giant 505700
- Vortex Style Nylon Impeller
- Allows for solid handling up to 3/8"
- 1-1/4" Discharge w/ 3/4" Garden Hose Adapter
- Easily connect to existing plumbing
- Great for emergency dewatering via garden hose
- 25-Foot Power Cord
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
505703
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Pump
Housing Material
Cast-Aluminum
Impeller Material
Plastic
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2400
GPH @ 5 feet
2100
GPH @ 10 feet
1800
GPH @ 20 feet
600
Discharge Port Size
1-1/4 Inch
Check Valve Included
No
Float On
7-10 Inches
Float Off
2-5 Inches
Manual Override
No
Engine
Horsepower
.25 HP
Overview
Product Category
Sump Pump
Weight
10.25 Pounds
Consumer Warranty
1 Year
Product Length
10.4 Inches
Product Width
8.7 Inches
Product Height
10.8 Inches
UPC
010121003392
