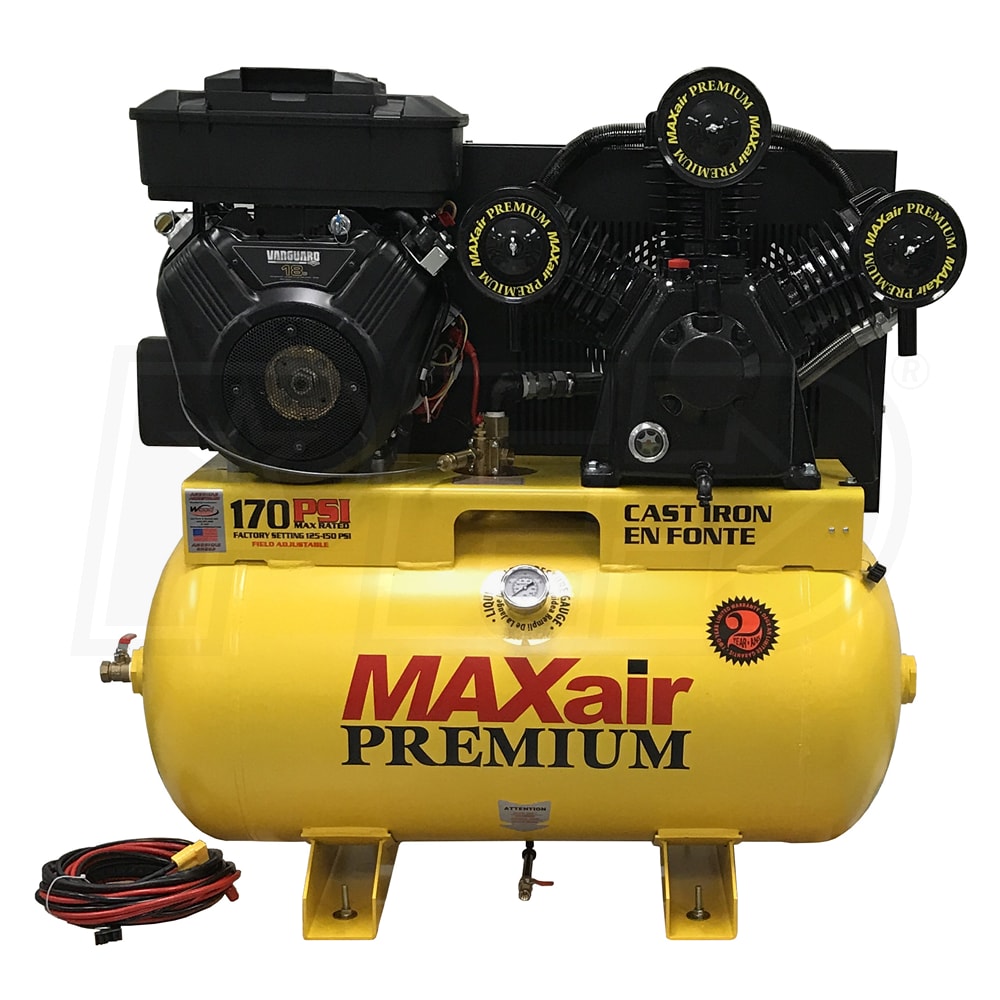

MAXair 18-HP 55-Gallon Truck Mount Air Compressor w/ Electric Start Briggs & Stratton Engine
Model:
18G55TRKE-H-MAP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Briggs & Stratton Vanguard
CFM
55
Tank Size
55
- Single Stage Commercial Pump Series Truck Mount Compressor
- Industry leading CFM production
- Great for mobile services, spray foaming, and construction jobs
- Innovative high pressure pump technology produces 170 PSI
- 18-HP Briggs & Stratton OHV Vanguard Electric Start Engine
- V-Twin commercial grade engine starts easily, runs quietly
- Sturdy fully enclosed metal belt guard protects the belt & the user
- Provided enough power for any job application
- Rugged Cast Iron "V" Style 3 Cylinder Pump
- V-style minimizes vibration, improves cooling for longer service
- Efficient heat removal from flywheel for cooler running & longer life
- Removable cylinders for smooth operation & easy maintenance
- High efficiency reed valves for maximum performance
- Premium "Auto Drop" Air Filters
- Automotive style filter elements; no hassle replacement
- 55 Gallon ASME Certified Air Tank
- Heavy duty 3/4" ball valve included
- Government registered tank; rated to 200 PSI
- Engine Idle Control
- Reduces operating cost & unnecessary wear
- Low oil shut down for maximum protection
- Pro-Style Gauges
- Liquid filled pressure gauge is easy to read
- Easy-view oil sight gauge for optimum maintenance
- Convenient Drains
- Extended oil drain allows for easy access
- Moisture drain on front of tank eliminates scraped knuckles
- Uses 12 Volt, Motorcycle-Style Starter Battery
- Includes 33' quick connect battery cable
- Battery not included; must be purchased separately
- Generous 2-Year Commercial Manufacturer Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
18G55TRKE-H-MAP
General Information
Product Category
Air Compressor - Portable
Engine
HP
18
Auto Idle
Yes
Engine Brand
Briggs & Stratton Vanguard
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
55
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
55 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
490 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
48 Inches
Product Width
20 Inches
Product Height
46.5 Inches
Power Type
Gas
