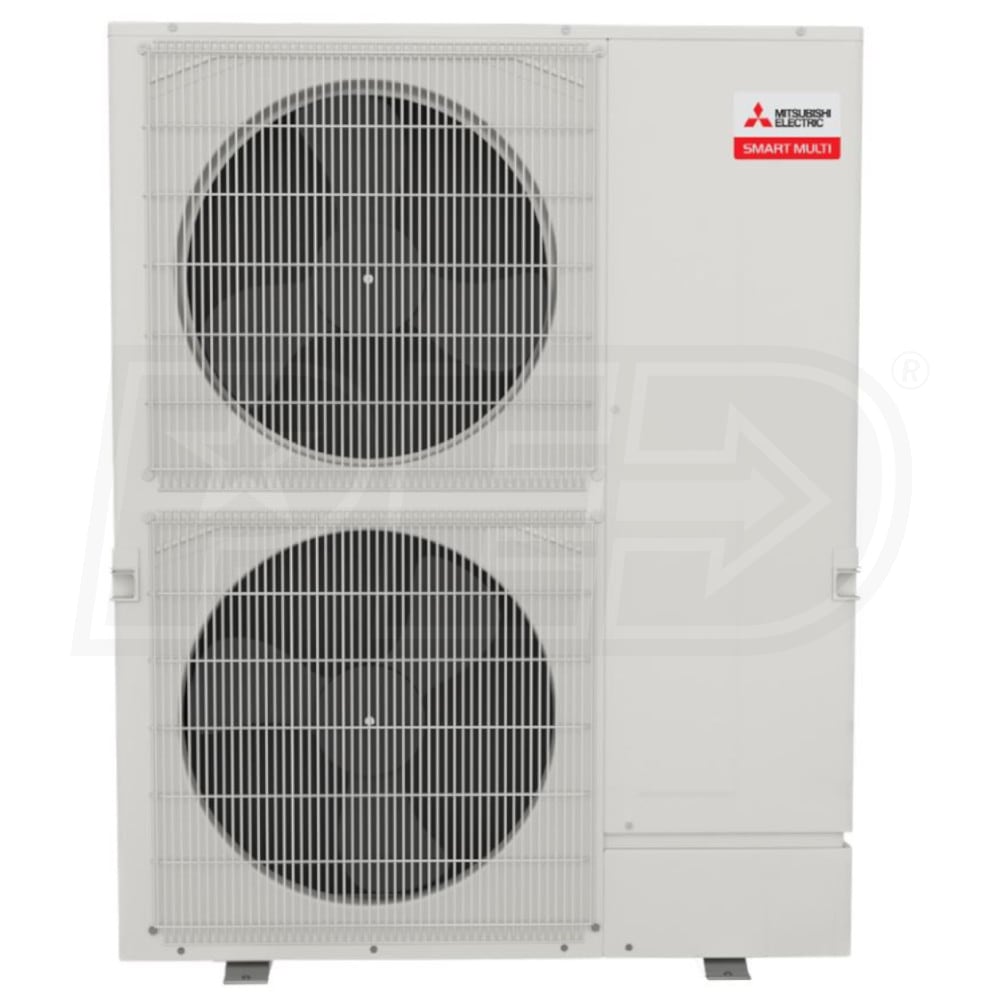

Mitsubishi MXZ-SM48NAM2
Mitsubishi MXZ-SM48NAM2
Hover to zoom
1 Of 5

Mitsubishi - 48k BTU - M-Series Smart Multi Outdoor Condenser - For 2-8 Zones

Model:

MXZ-SM48NAM2

Write A Review
$4,977.76
Was $5,276.25
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 4th
Shipping to60601
synchrony card logo
$63 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Mitsubishi - 48k BTU - M-Series Smart Multi Outdoor Condenser - For 2-8 Zones
Mitsubishi - 48k BTU - M-Series Smart Multi Outdoor Condenser - For 2-8 Zones
Model: MXZ-SM48NAM2
$4,977.76
Was $5,276.25
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MXZ-SM48NAM2 is an outdoor condenser for use in multi-zone mini split applications. It supports up to eight indoor units, allowing you to create a custom zoned heating and cooling system based entirely around the specific needs of your home. With a broad range of compatible indoor units and efficiency-boosting inverter technology, the MXZ-SM48NAM2 is a smart addition for nearly any home.
  • Precision Temperature Control Technology
  • This outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, these components provide precise temperature control and incredible efficiency.
  • Mix and Match
  • The MXZ-SM48NAM2 is compatible with more than a dozen different indoor units. This makes it easy to design a system that suits your home, no matter how it is arranged.
  • Product Compatible With
  • Mitsubishi MSZ-GL Wall Mounted Mini Split Indoor Units
  • Mitsubishi MSZ-GS Wall Mounted Mini Split Indoor Units
  • Mitsubishi MSZ-FH Wall Mounted Hyper-Heating Mini Split Indoor Units
  • Mitsubishi MSZ-FS Wall Mounted Hyper-Heating Mini Split Indoor Units
  • Mitsubishi MSZ-EF Wall Mounted Designer Mini Split Indoor Units
  • Mitsubishi MFZ-KJ Floor Standing Mini Split Indoor Units
  • Mitsubishi SEZ-KD Concealed Duct Mini Split Indoor Units
  • Mitsubishi MLZ-KP One-Way Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi MLZ-KY One-Way Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi SLZ-KF Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi PLA-A Ceiling Cassette Mini Split Indoor Units
  • Mitsubishi PEAD-A Concealed Duct Mini Split Indoor Units
  • Product Note
    This product requires at least two compatible Mitsubishi mini split indoor units and the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Branch Box - A Mitsubishi branch box is required to connect this condenser to Mitsubishi mini split indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    • Adding these accessories to your order will provide a complete, ready-to-install mini split system.
    Mitsubishi products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://metahvac.com/ within 90 days of installation.

Specifications

MXZ-SM48NAM2
specs product image PID-153835
General Information
Type
Outdoor Condenser
Product Line
M-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Outdoor Unit Size
48000 BTU
Performance
Cooling BTU
48000
Cooling Capacity
48000 BTU
Heating Capacity
50000 BTU
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
35 Amps
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
492 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
52 11/16 Inches
Product Width
41 17/48 Inches
Product Depth
13 Inches
Product Weight
271 Pounds
Shipping Weight
295 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years

Reviews

Mitsubishi MXZ-SM48NAM2 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.

Product Q&A

Expert avatar photo
Be the First to Ask A Question Answered by Ken, the eComfort Product Expert

How-To Articles

How to Pick the Perfect Mini Split Suspended Indoor Unit
How to Pick the Perfect Mini Split Suspended Indoor Unit
A ceiling-suspended mini split is the perfect ductless solution for large open ...
What You Should Know About Mini-Split Wiring
What You Should Know About Mini-Split Wiring
Although they are easier to install than central air conditioning systems, mini...
How to Pick the Perfect Mini Split Ceiling Cassette Unit
How to Pick the Perfect Mini Split Ceiling Cassette Unit
Many of us like it when our heating and cooling equipment is out of sight and o...
Power Equipment How-To Library
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery

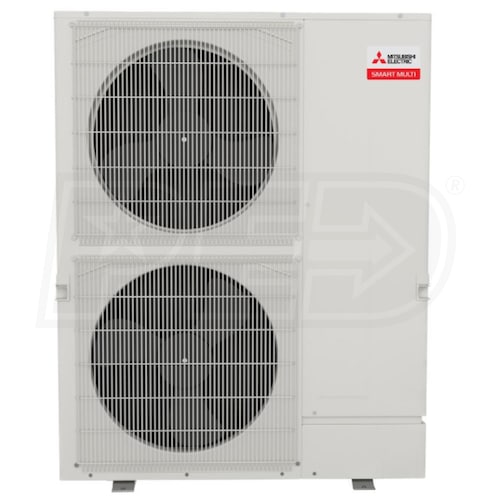

Mitsubishi - 48k BTU - M-Series Smart Multi Outdoor Condenser - For 2-8 Zones
