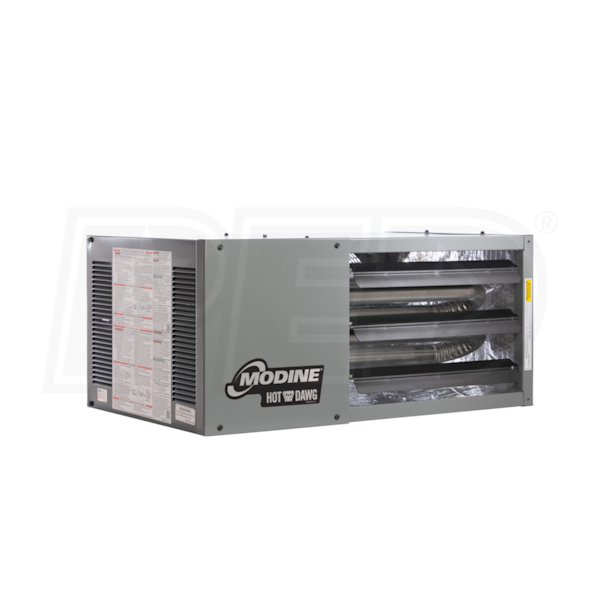

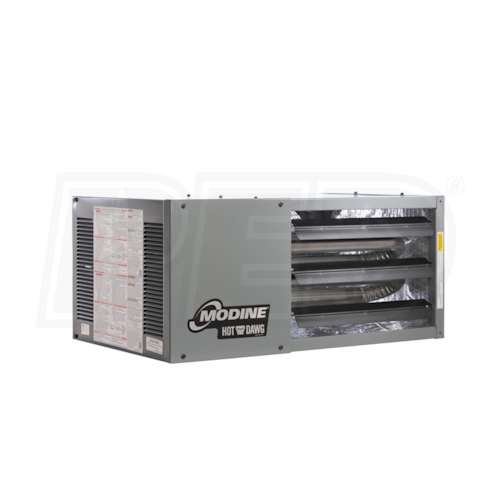

Modine Hot Dawg HD - 125,000 BTU - Unit Heater - LP - 80% Thermal Efficiency - Power Vented - Aluminized Steel Heat Exchanger
Model:
HD125AS0121
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
11
Model: 53082
$116.00
Only 3 In-Stock
$65.00
Model: 27866
$122.00
Only 2 In-Stock
Model: 56961
$98.00
Only 1 In-Stock
$156.00
Only 2 In-Stock
$542.00
$793.00
$949.00
$16.00
In-Stock
$38.00
In-Stock
Model: 53863
$85.00
Features
- Hush-Puppy Quiet Operation
- The HD125 is incredibly quiet during operation. This allows the heater to be inconspicuous yet effective at all times - it will not distract you from your work.
- Low Profile Design
- The HD125 has an incredibly low profile design, measuring in at a height of only 20.5 inches. It can be mounted with a one inch clearance from the ceiling on only two angle brackets, keeping the unit heater out of your way.
- Aluminized Steel Heat Exchanger
- The aluminized steel heat exchanger passes lower manufacturing costs along to the consumer, is incredibly durable and is protected by a full 10 year warranty by Modine.
- Electric Knockouts
- Electric wiring knockouts and field wiring connections on the HD125 keep installation costs low and save time during both installation and maintenance for your contractor by simplifing all required electrical work.
- Permanently Lubricated Motor
- The motor on the HD125 has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
- Power Venting System
- The power venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors, and requires minimal installation labor. This keeps installation related costs as low as possible.
- Baked Polyester Paint
- The HD125 features a neutral colored baked on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
- Finger Proof Fan Guard
- This model features a Finger Proof Fan Guard standard.
- 208V/1Ph/60Hz
- 230V/1Ph/60Hz
- 208V/3Ph/60Hz
- 230V/3Ph/60Hz
- 460V/3Ph/60Hz
- 575V/3Ph/60Hz
The Modine name has become synonymous with quality unit heaters in millions of homes and workshops all across the world. The HD125 is no exception to this rule, with sound engineering and reliability to last decades on end. Field wiring connections and electrical knockouts allow the HD125 to be installed nearly anywhere, while it's quiet operation and a natural, neutral coloring allow it to blend in seamlessly in any location.
Product Note
The Modine Hot Dawg logo on your unit may be blue and red or black and grey. These alternate power configurations are available for this item:
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
HD125AS0121
Overview
Product Category
Unit Heater
UPC
46629533116
General Information
Product Line
Hot Dawg HD
Product Category
Unit Heater
Heat Exchanger Material
Aluminized Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Available
Performance
Heating Capacity
102500 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
125000 BTU
Thermal Efficiency
80 %
Air Throw
56 Feet
Maximum Air Flow
1980 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
4 Inches
Gas Piping Diameter
1/2 Inch
Product Height
20 1/2 Inches
Product Width
35 1/2 Inches
Product Depth
31 Inches
Product Weight
125 Pounds
Shipping Weight
125 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
Reviews
(38)
Modine HD125AS0121 Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.89
(38 Ratings)
5
(34)
(34)4(4)
(4)3(0)
(0)2(0)
(0)1(0)
(0)Shop Heater
By Brody T
Washington
Review Posted 07/24/2022
Was needing a heater to take the chill off my shop. I installed it myself. With a little help of my wench to get it to my 12ft ceiling... shop is 26x30. Was done in no time. Started up first time with no problems. Temp out side around 38* . It took about 20min. To bring the temperature up to 68*. Works great.
Brody T Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use
This Big Heater Does The Job!
By Randi K
Zionsville, Pennsylvania
Purchased 01/07/2022 |
Review Posted 02/22/2022
I decided to do the installation myself so I spent a little more to buy the 125K rather than the 75K unit. Straight forward installation if you have a solid understanding of plumbing and electrical along with some mechanical smarts for the mounting. Excellent product. It burns clean, quiet and raised my insulated 24x50x13ft ceiling garage 20 degrees in 45 minutes. I believe I will be happy with this heater for many winters to come!!!
Randi K Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Id Buy It Again, Price, High Quality, Quiet
Cons:
None
Hot Dawg 125 Btu
By Eric S
FRANKSVILLE, Wisconsin
Purchased 11/05/2020 |
Review Posted 11/27/2020
In about 2 hrs had it up an running no problems. Very surprised how Quiet this unit is. Heats 50x50 14 foot ceiling no problem.
Eric S Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
Price, Quiet
This furnace is great way to heat pool barns
By James R.
New Boston, Michigan
Purchased 02/05/2020 |
Review Posted 04/11/2020
It can heat my pool barn 30 Degrees to 70 degrees in 20 minutes.
James R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Love this heater very easy installation.
By Vincent D.
south range, Wisconsin
Purchased 03/18/2020 |
Review Posted 04/09/2020
Was easy to install and works as intended.
Vincent D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Id Buy It Again, Reliable, High Quality, Easy To Use
Awesome, awesome, awesome that’s all I can say about this produc
By David S.
Jewett City, Connecticut
Purchased 11/18/2019 |
Review Posted 01/02/2020
Fantastic
David S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Very well built
By John G
Riverton, Illinois
Purchased 02/25/2019 |
Review Posted 03/20/2019
I researched for weeks for a shop heater. When I found the Modine and read the review and the history of the company I was sold. Heater was delivered on time no damage to the unit. As far as the heater it woks great. My shop is 25x45 and 18’ ceilings with mostly r-11 insulation it usually takes 30 mins to raise it from 30 degrees to 65 I highly recommend.
John G Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
I like it
By Luis J
plainfield, Wisconsin
Purchased 12/26/2018 |
Review Posted 02/08/2019
So far its been working really nice, I hope it stays like that for a long time. I would definitely recommend this product.
Luis J Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
I'd Buy It Again, Reliable, Durable, High Quality
Cons:
Expensive
Well satisfied
By Tyler S
970A Highway 20, Louisiana
Purchased 01/15/2019 |
Review Posted 02/06/2019
I am very well satisfied with the heater. It’s much quieter than a heater I purchased a while back and it seems to heat much better even though it’s the same BTU rating.
Tyler S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Great unit for heating a shop
By Jerrold W
Farmington, Minnesota
Purchased 11/27/2018 |
Review Posted 12/21/2018
I have had the 60K HDS unit installed in my wood shop for just over a week now. It is working great. The area I am heating is 25 x 24 with 12 ft ceiling. We have had temps under 20F and it maintains 50 easily, hardly ever running. It can also get it up to 60 quickly when I am working in the shop.
Jerrold W Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Product Q&A
(4)
Product Questions
Answered by Ken, the eComfort Product Expert
Can the Hot Dawg 125000 btu LP heater model HD125AS0121 be horizonally vented through an outside wall?
Paul R
from Illinois
August 31, 2019
Can I connect the 3" flue to an existing 4" roof vent?
William D
from New Jersey
September 04, 2017
What are typical installation costs for a Modine Hot Dawg heater?
Bob
from Pennsylvania
November 20, 2015
When mounting near the ceiling of a 12' high shop, does the unit need to be mounted angled down towards the floor to get heat at floor level?
Mike
from Oklahoma
October 17, 2015
