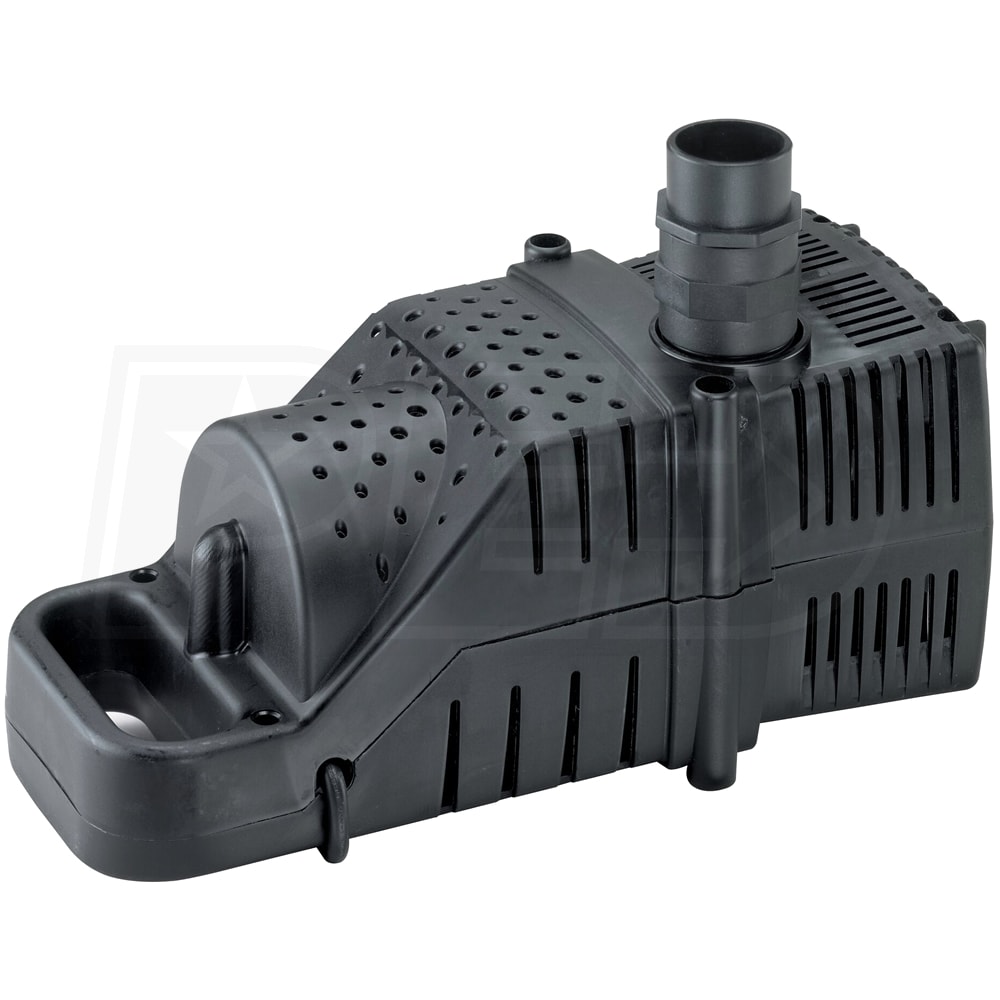

Pondmaster ProLine HY-DRIVE 6000 GPH Submersible Waterfall / Pond Pump
Model:
PLHD 6000
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
2 Inch
Style
Pond
GPM
100 Gallons
- Pondmaster 6000 GPH Proline Hy-Drive Water Pump
- 3-Year Limited Warranty
- Makes it easy to transport and position pump
- Made for pond skimmers in a larger ponds and waterfalls
- Fish Safe Design
- Oil-Free cooling means unit won't leak or contaminate water
- Hy-Drive Magnetic / Direct Drive Induction Motor
- High efficiency design, only draws 5.5-Amps (675 Watts)
- Delivers greater performance compared to standard Hy-Drive pumps
- 316 Stainless Steel Rotor
- Provides greater corrosion and wear resistance for longer pump life
- Heavy-Duty, Polypropylene Enclosure w/ Extra-Long Clog Resistant Filter Screen
- Keeps dirt and debris from entering pump in submersible applications
- Asynchronous Vortex Impeller
- Provides whisper quiet, continuous duty operation
- Submersible or In-Line Use & Vertical or Horizontal Positioning
- Meets the needs of a wide variety of water feature applications
- 2" Inlet & 2" Outlet
- Includes threaded female couplings and fittings
- 20-Foot, Grounded (3-Prong) Power Cord
- Allows for easy set-up and operation
- Built-In Carry Handle
PROLINE BY PONDMASTER HY-DRIVE PUMPS are unique, high-capacity pumps designed specifically for use in larger pond installations. The Hy-Drive design combines the benefits of magnetic and direct drive technologies to deliver great performance and high efficiency in an extremely quiet, low maintenance package. The heavy-duty polypropylene enclosure has a built-in carry handle and effective molded-in debris screen. Hy-Drive pumps can be positioned vertically or horizontally and can be used as a submersible pump or as an inline, external pumping source.
Specifications
PLHD 6000
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
5.5
Thermal Protection
No
Power Cord Length
20 Feet
Oil Free Motor
Yes
Pump
Gallons Per Minute
100 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
2 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
22.4 Feet
GPH @ 0 feet
6000
GPH @ 5 feet
4700
GPH @ 10 feet
3650
GPH @ 15 feet
2450
GPH @ 20 feet
1150
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
No
Overview
Product Category
Water Pump
Made in USA
No
Consumer Warranty
3 Years
Product Length
9.75 Inches
Product Width
6 Inches
Product Height
7.25 Inches
UPC
025033026834
Additional Model Numbers
2683, PLHD 6000
Accessories
Hose Couplings
Yes
