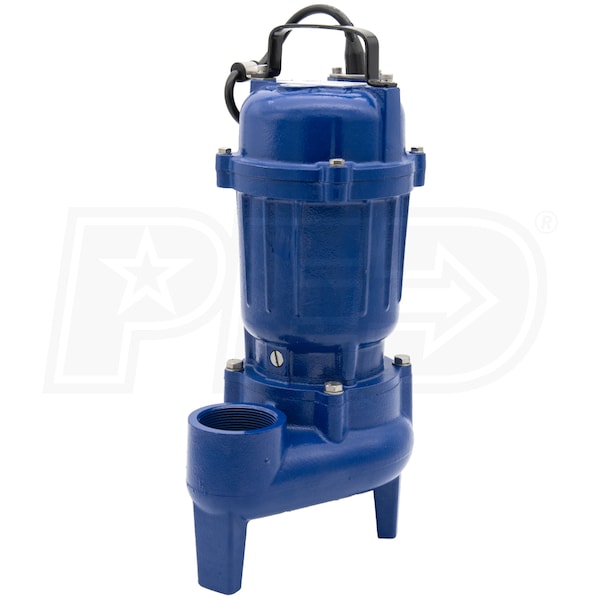

Pro Series E7055NS - 1/2 HP Cast Iron Sewage Pump (2") (Non-Automatic)
Model:
E7055-NS
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Sewage Pump
GPH
7200 Gallons
Switch Type
None
- ***NON-AUTOMATIC - Requires Float Switch or Controller***
- Submersible Cast Iron Sewage Pump
- An industrial grade pump for residential applications
- Heavy-Duty Cast Iron Construction
- Maximizes cooling to extend the life of the pump
- Rugged, Energy Efficient & Thermally Protected 1/2 HP Motor
- Rated for continuous duty for years of reliable operation
- Dynamically-Balanced Cast Iron
- Heavy-duty design, passes spherical solids up to 2"
- 2-Inch Discharge
- Replaces most sewage/ejector pumps without plumbing changes
- Dual Carbon/Ceramic Seals Plus 1 Buna N Seal
- Provides superior abrasion resistance to extend pump life
- Upper/Lower Ball Bearings
- Designed for quite operation and reliable pumping
- Non-Corrosive Stainless Steel Motor Shaft & Fasteners
- Increases the lifespan of the pump even in the harshest systems
- 10-Foot Power Cord
- Provides enough distance to outlet for residential applications
- 3 Year Limited Warranty
Specifications
E7055-NS
General Information
Product Category
Sump Pump
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
No Switch
GPH @ 0 feet
7200
GPH @ 5 feet
6360
GPH @ 10 feet
5400
GPH @ 15 feet
3960
GPH @ 20 feet
2160
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
39 Pounds
Consumer Warranty
3 Years
Product Length
9 Inches
Product Width
5.875 Inches
Product Height
16.5 Inches
UPC
717301122057
Additional Model Numbers
E7055NS, E7055-NS
Reviews
(7)
Pro Series E7055-NS Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Jim, the Sump Pump Expert
Is drilling an air bleed hole in the output pipe required in this sewage pump installation to prevent air lock?
J
from Wisconsin
March 10, 2021
Hi, I see the running amperage for the Pro Series E7055NS - 1/2 HP is 7Amps do you know what the start up amps are?
Brandon
from Illinois
August 21, 2013
