Features
Grade
Consumer
Style
DC Compressors
CFM
1.36
Tank Size
0
- Oil-Less, Direct-Drive Design
- Allows unit to be mounted in any direction
- Ideal for offroad, RV, agriculture, construction & motorsport use
- Runs On 12-Volt DC Power
- Use anywhere you can mount a battery & need on-board air
- Requires 50aH battery (battery & cables not included)
- Patented Pump Design
- Produces 2cfm at 40 psi
- Runs with lower noise (78dB) & improved cooling
- Deep Cooling Fin Design On Cylinder Head & Cylinders
- High efficiency cooling helps the pump last longer
- Oversized Motor Cooling Fan
- Helps prevents the motor from overheating
- Continuous 100% Duty Cycle
- Ideal for high-demand applications
- Tankless
- Can be used with a tank (sold separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DE07
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
46
Engine
HP
0.75
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
1.36
CFM Rated @
90 PSI
CFM @ 40 PSI
2
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
19 Pounds
Consumer Warranty
1 Year
Product Length
12.2 Inches
Product Width
7.5 Inches
Product Height
11 Inches
UPC
636084011030
Reviews
(9)
Puma DE07 Reviews & Ratings
Product Q&A
(2)
Product Questions
Answered by Melissa, the Air Compressor Expert
Is this able to provide air to an air horn without using a tank?
Wayne
from Utah
November 11, 2019
Can this unit be run continuously to pump air into my pond?
Robert
from Texas
May 04, 2018
How-To Articles
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
We've all heard that Rome wasn't built in a day, but then again the R...
Manuals
DE07
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

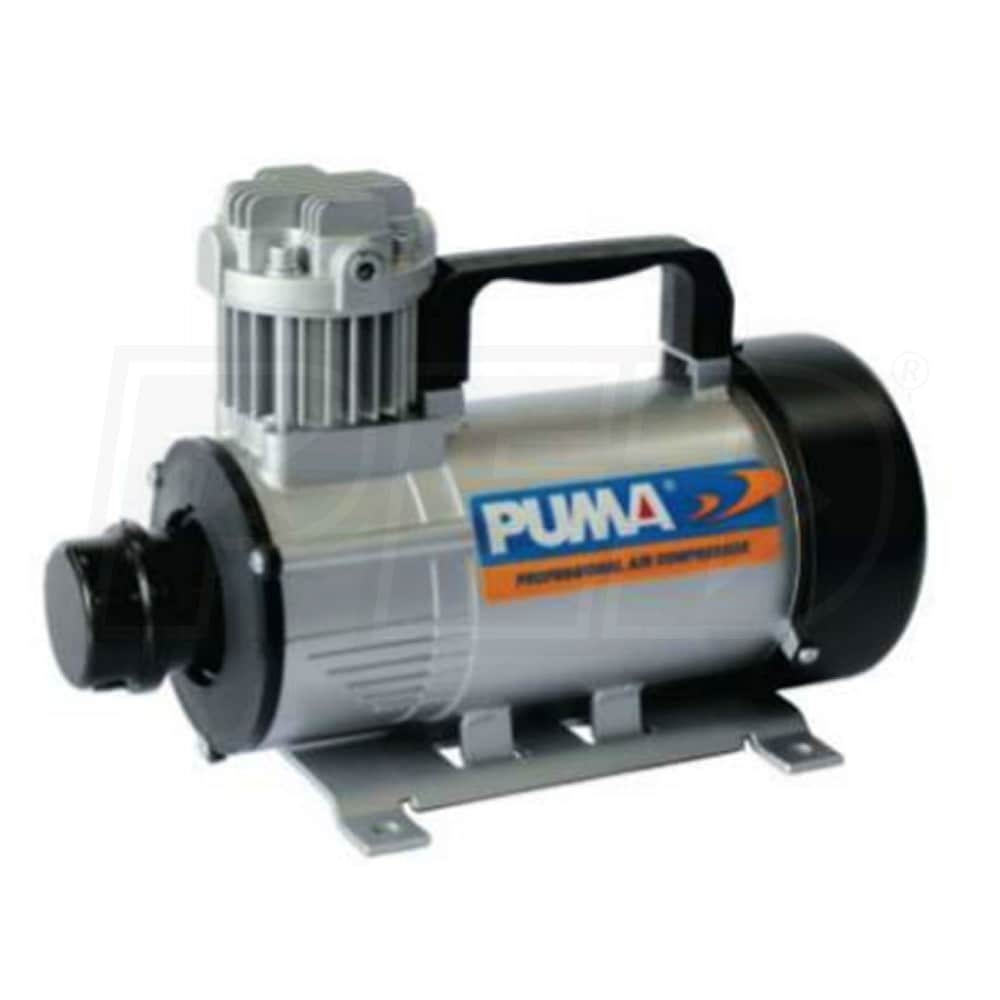

Puma 3/4-HP 12-Volt Continuous Duty Tankless Air Compressor

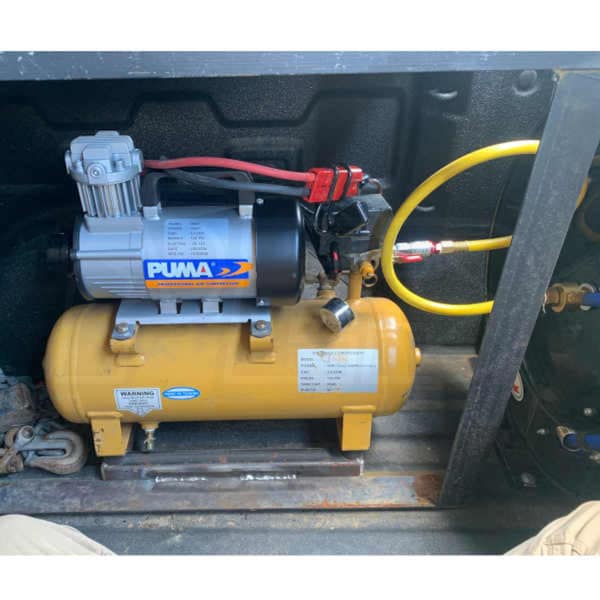

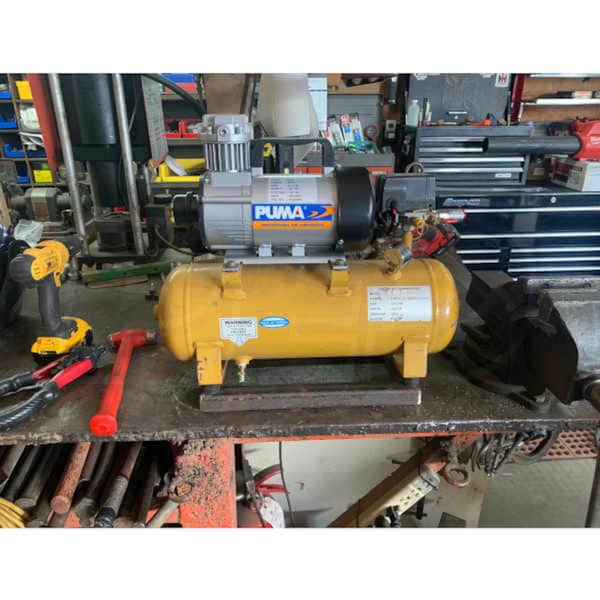

Customer Review Images
