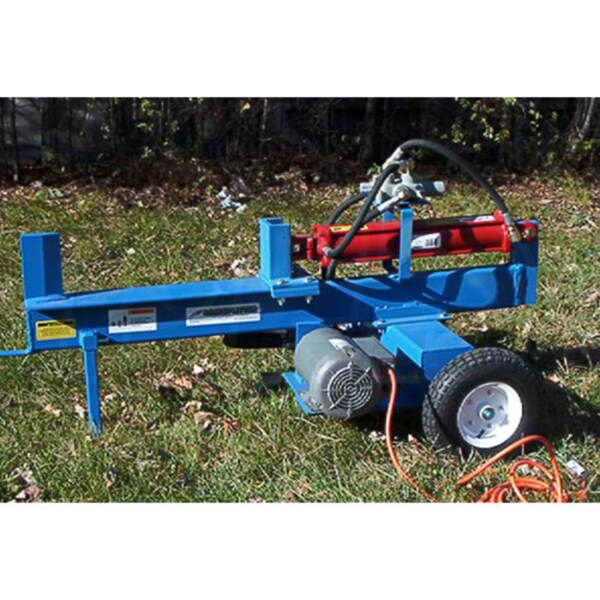

Ramsplitter 16-Ton Horizontal Electric Log Splitter

Model:

H16-4

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View Ramsplitter 16-Ton Horizontal / Vertical Electric Log Splitter
Model:
HV16-4
$1,199.99
Product Discontinued
Ramsplitter 16-Ton Horizontal Electric Log Splitter
Ramsplitter 16-Ton Horizontal Electric Log Splitter
Model: H16-4
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

Ramsplitter 16-Ton Horizontal Electric Log Splitter


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Quiet And Efficient 1.5 HP Electric Motor
  • Equivalent to a 7 HP gasoline engine
  • No more oil changes, just plug in and start splitting
  • Uses household outlet; pulls 15 amps
  • 2 Stage Barnes Pump
  • Quicker 10 to 14 second cycle time
  • 16 Tons Of Ram Force
  • High torque without the mess or trips to the gas station
  • Steel wedge can be sharpened with a steel grinder
  • Brass wear strips between ram & beam for longer wear
  • 3 1/2 Inch Cylinder
  • Detented return control valve lock for hands-free reverse
  • Lets you load the next log quicker
  • Tow With Your Garden Tractor Or ATV
  • Comes with a pin hitch
  • 10" pneumatic tires handle tough terrain
  • Can NOT Be Towed On Public Roads
  • 4 Gallon Hydraulic Fluid Reservoir
  • Fill to 1 inch from top of tank with hydraulic fluid
  • Breather cap will leak if overfilled

Specifications

H16-4
specs product image PID-3296
Engine
HP
2 HP
Motor
Motor Voltage
120-Volts
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
4 Gallons
Cylinder Diameter
3.5 Inches
Cylinder Length
18 Inches
Cycle Time
12 Seconds
Tonnage
16 Tons
Overview
Assembly Required
Yes
Weight
300 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
62 Inches
Product Width
32 Inches
Power Type
Electric
Wedge
Wedge Material
Steel
Wedge Size
7 Inches
Wedge Style
2-way
Replaceable Wedge
No
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
20 Inches
Tractor Hitch
Tractor Hitch Style
1-Point
Towing
Towable
Yes
D.O.T. Lights
No
Max Towing Speed
5 MPH
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons

Reviews

(1)
Ramsplitter H16-4 Reviews & Ratings
Verified Buyer
Verified Buyer
Alaska gal's best friend!
By Cindy
Wrangell, Alaska
Purchased 09/03/2012 |
Review Posted 09/24/2012
Love it!

I can split wood all day long with this thing and never get tired. I've put nasty old knotty hemlock logs in it and it pushes right through them.

The electric motor is wonderful, no need for messy and expensive gas and oil, and no internal combustion engine to maintain. No exhaust to breathe and less noise.

The Owners Manual is decent. Minor assembly was easy... just put on the wheels, leg stand & operating handle, add fluid and you're ready to split some wood.

My splitter is new, but I know two other people who have the exact same model and they've been running them for about 5 years without any complaints. So, I expect to get many years of use.

I recommend one for anyone who heats primarily, or exclusively, with wood.
