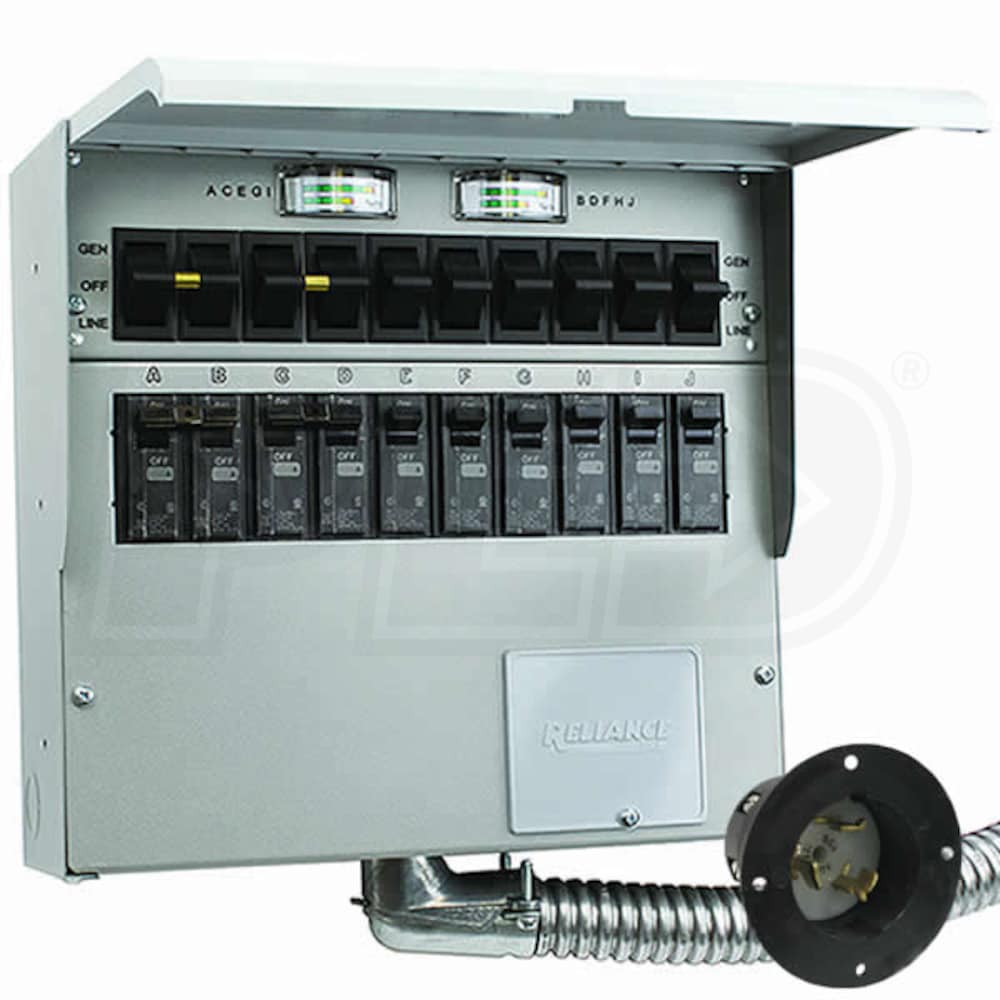

Reliance Controls Pro/Tran2 - 50-Amp (120/240V 10-Circuit) Indoor Transfer Switch w/ Wattmeters & Inlet

Model:

A510A

Write A Review
$520.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks

Reliance Controls Pro/Tran2 - 50-Amp (120/240V 10-Circuit) Indoor Transfer Switch w/ Wattmeters & Inlet
Reliance Controls Pro/Tran2 - 50-Amp (120/240V 10-Circuit) Indoor Transfer Switch w/ Wattmeters & Inlet
Model: A510A
$520.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Manual

Amp Rating

50

Circuits

10

Voltage

120/240 Single-Phase

Enclosure

NEMA 1R

  • Pro/Tran® 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • (10) Total Circuits (1" Interchangable Style)
  • (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
  • Eliminates dangerous backfeeds and electrical overloads
  • Safest Way to Distribute Power
  • Allows hardwiring OR plug-in connection via power inlet (included)
  • Versatile Connection
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5- Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

A510A
specs product image PID-50931
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012212
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 120V
1
Circuit Breaker Protection
Each Circuit
Plugs
CS6364/5 - 50-Amp Twistlock
1
