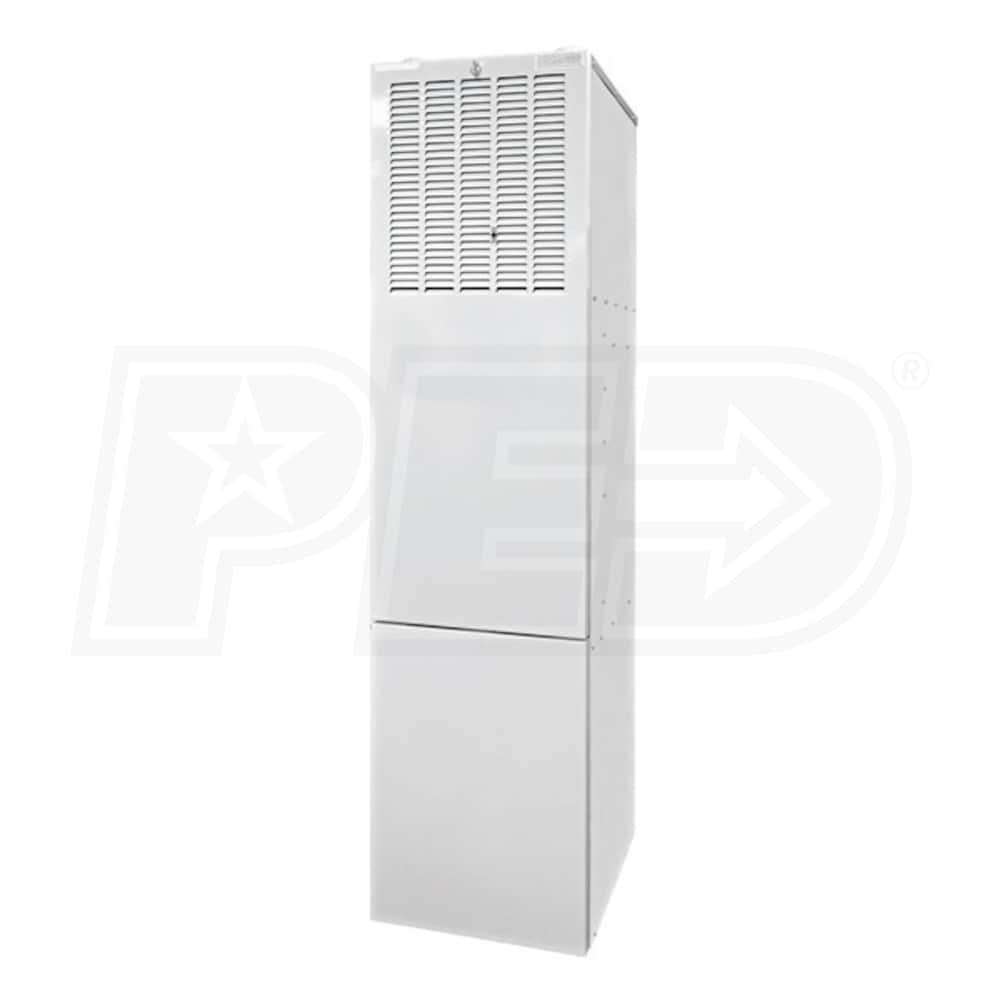

Revolv VMC - 75,000 BTU - Gas Furnace - Manufactured Home - NG - 95% AFUE - Single-Stage - Downflow - Multi-Speed
Model:
VMC1-75D36N
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Field Convertible
- All VMC furnaces are field convertible to liquid propane. A conversion plate and orifice are included with the gas valve, so that conversion can be handled during installation without requiring any additional parts.
- Multi-Speed
- The VMC1-75D36N uses a timed four-speed direct drive motor for the blower, giving you excellent airflow that can be scaled to your application.
- Dual Heat Exchanger Design
- The primary exchanger employs an aluminum coating for optimal heat transfer. The secondary heat exchanger is made from stainless steel, giving it durability, corrosion-resistance, and a long life span.
- Advanced Ignition System
- The combination of a slow-opening gas valve and a silicon nitride igniter give the VMC1-75D36N an ignition process that is quiet and reliable.
- Easily Accessible
- Accessing the vent pipes and internal components of the VMC gas-fired manufactured home furnace is a breeze. A two-piece top makes installing and maintaining your equipment easy.
- Internal Filtration
- The VMC doesn't just keep your home comfortable, it also keeps you air clean. A return air filter that captures dust, lint, and other contaminants is installed inside the door of the furnace where it are easy to check and replace.
- Product Includes
- (1) Revolv VMC1-75D36N Gas-Fired Furnace
- (1) Liquid Propane Conversion Kit
- (1) Filter
Revolv, a division of Coleman, is dedicated to bringing efficient comfort to the manufactured and mobile home market. The VMC is an incredibly efficient gas-fired furnace designed specifically for installation in manufactured homes. With a 95% AFUE rating, you can be sure that the VMC is making the most of your energy dollar. It utilizes sealed combustion, venting and drawing combustion air directly from outside your home and requires 0" clearance to combustibles on the back, sides, and top. A depth of just over two feet, a width of only 18", and a simple installation process mean that it's easy to integrate a VMC into your manufactured home and enjoy efficient comfort.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
VMC1-75D36N
General Information
Type
Gas Furnace
Product Line
VMC
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
ECM Multi-Speed
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow
Gas Conversion Kit
Included
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95 %
Heating BTU
75000
High Fire Input
75000 BTU
High Fire Output
72000 BTU
Maximum Air Flow
1366 CFM
Minimum Air Flow
773 CFM
Ultra Low NOx Emissions
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Low NOx Emissions
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
No
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
7.15 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 Inches
Product Height
76 1/8 Inches
Product Width
18 3/4 Inches
Product Depth
25 3/4 Inches
Product Weight
205 Pounds
Shipping Weight
215 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7038136
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
Limited Lifetime Years
