Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Compressor-City: Linking Multiple Compressors Together
- Seamless interconnection of multiple reciprocating compressors of different types, sizes and brands as a single system
- Automatically prepares and ramps up assets up or down based on air demand
- Offers optimal energy footprint during transition without human interaction
- Compressor Pump Smart Start
- Reduces startup current by as much as 20%, lowering demand charges
- Prevents high humidity air intake
- Guards against air/oil contamination
- Precision time, environmental and operational digital pump alternator
- Intelligent Moisture Control
- Calculates condensate formation in real time based on environmental conditions during pumping for awareness on when to drain
- Drains only the condensate when present, preventing unnecessary air waste/pump cycling
- Automatic Overheat Protection
- Detects when pump is overworked and overheated in operation
- Preventatively stops the pump operation to prevent failure
- Air-Line Rupture Detection
- Continuously monitors and alerts for air leaks
- Detects air-line rupture
- Stops pump and signals alert to prevent over-cycling and burnout
- Digital Management Of Pressure Band Gap
- Digitally maintains pressure band gap
- Maintains pressure band gap through all environmental conditions
- Compressed Air Usage Meter
- Maintains lifetime pump cycle counter for number of total cycles since installation
- Maintains lifetime hour counter for number of total hours of pump operation since installation

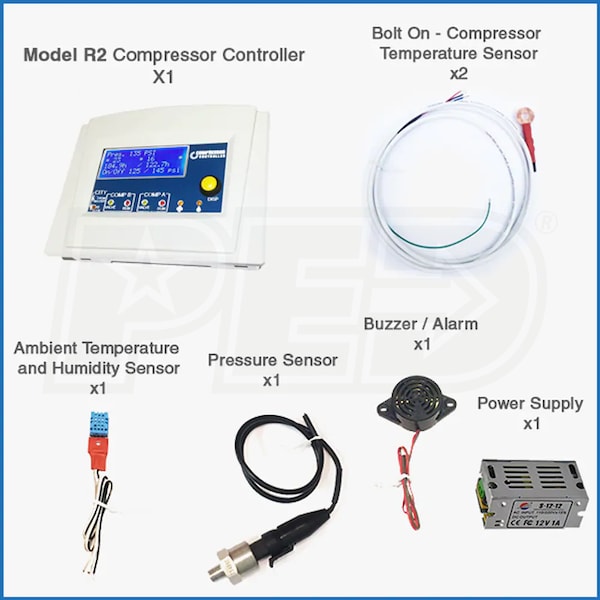

- The R2 Duplex Standard Kit includes:

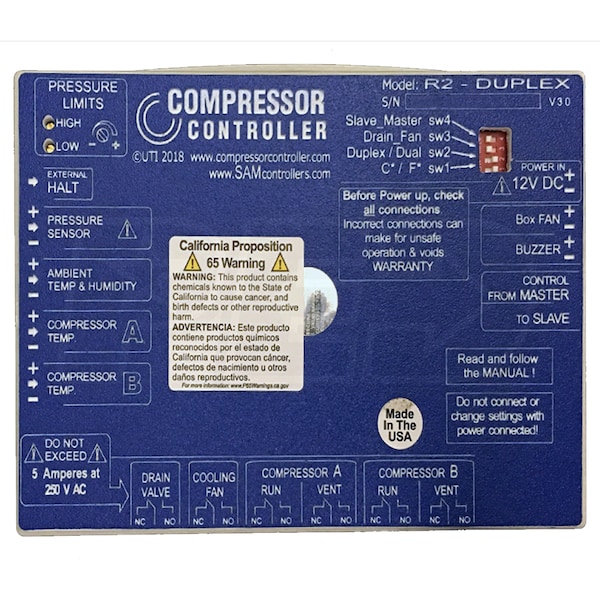

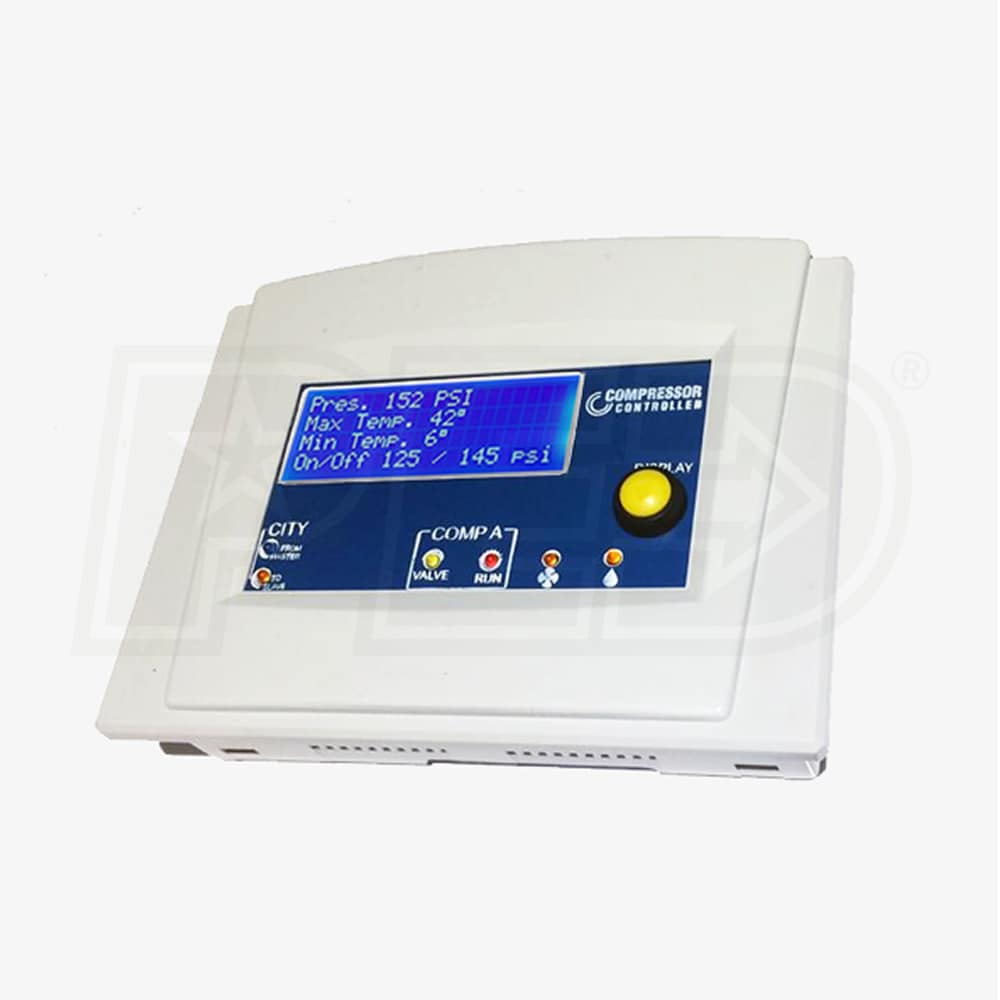

- 1x: R2 Duplex Compressor Controller
- 1x: Pressure sensor 1/4
- 1x: Temperature / humidity sensor
- 1x: Compressor temperature bolt-on sensor
- 1x: Buzzer
- 1x: Power supply 12v out / 95 - 277vac in
- R2 CCR200 Only Compatible with Duplex Air Compressors
The Compressor Controller is a state-of-the-art machine learning control system for reciprocating air compressors that automates operation and saves thousands of dollars in lifetime operating costs while delivering better air quality. With a flexible form factor, it is easily adaptable to almost any reciprocating air compressor. It combines Real-Time environmental and operational sensing into a model that drives the control of the compressor which immediately improves operation to continuous peak performance, self-adjusting in real time to the changing environmental conditions for the ultimate in work consistency.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

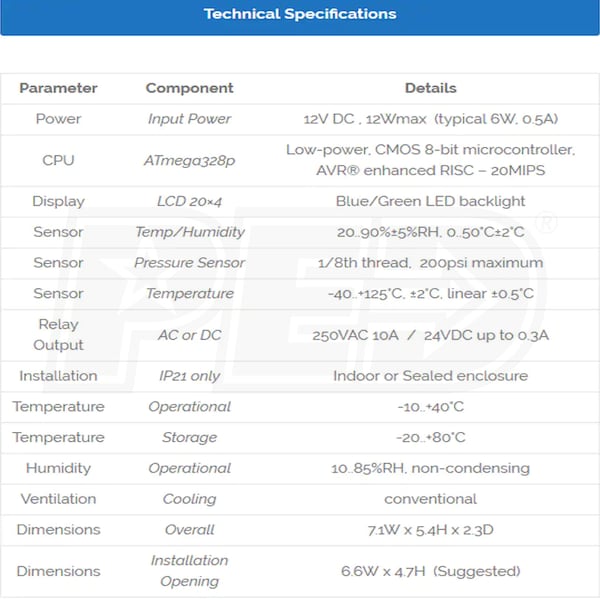

Specifications
CCR200
General Information
Product Category
Air Compressor Maintenance Kits
Overview
Product Category
Air Compressor Maintenance Kits
Weight
1.5 Pounds
Consumer Warranty
1 Year

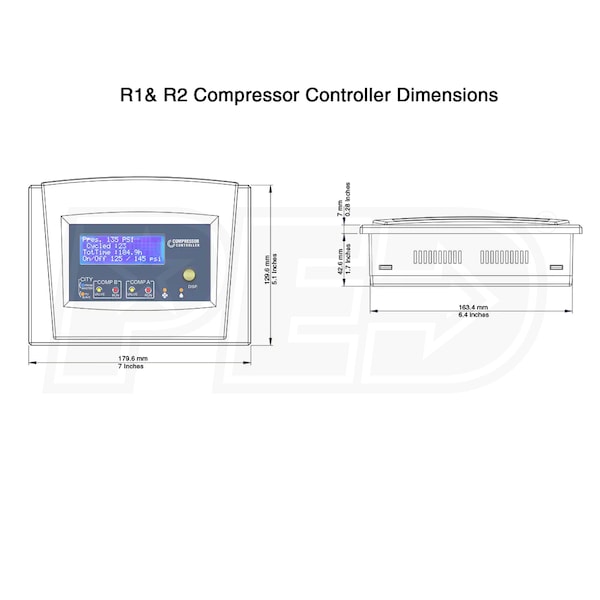

Product Length
2.3 Inches
Product Width
7.1 Inches
Product Height
5.4 Inches
Additional Model Numbers
R2DUPLEX, CCR200
