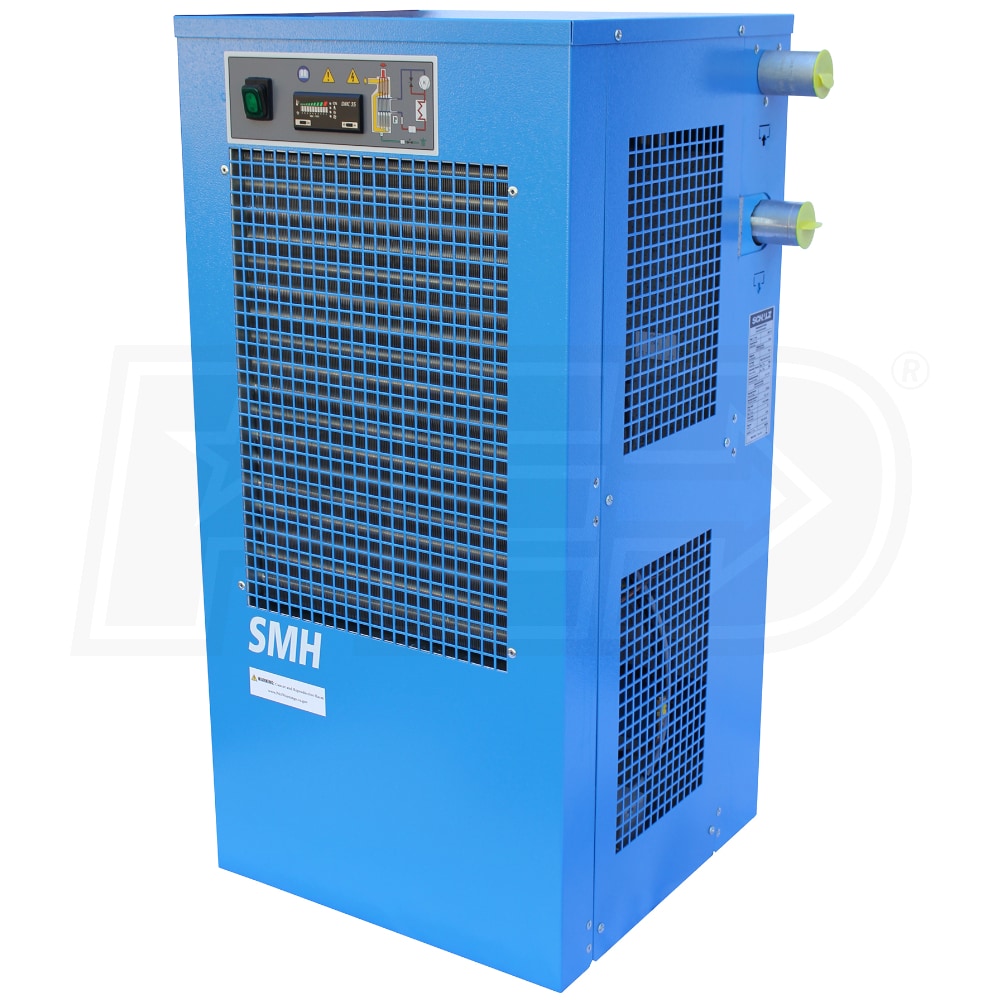

SCHULZ SMH-100-UP - 1-1/4" High Temperature Non-Cycling Refrigerated Air Dryer (100 CFM) 115V-1 Phase

Model:

SMH100-UP

Write A Review
$3,199.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

SCHULZ  SMH-100-UP - 1-1/4
SCHULZ SMH-100-UP - 1-1/4" High Temperature Non-Cycling Refrigerated Air Dryer (100 CFM) 115V-1 Phase
Model: SMH100-UP
$3,199.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Dryer Voltage

115V 1-Phase

Air Dryer CFM

100
  • Schulz SMH-100-UP - High Temp Non-Cycling Refrigerated Dryer
  • Eliminate the need for separate aftercooler and moisture separators
  • Helps conserve energy & floorspace; Less equipment to install & maintain
  • Innovative Design - No Longer Necessary to Upsize Dryer
  • Designed to accept up to 194°F inlet air temperatures
  • Operate in 113°F ambient conditions
  • 3 In 1 System
  • Dryer, aftercooler and moisture separator
  • Clean, Dry, Filtered Compressed Air - 100 CFM at 176°F PDP
  • Aftercooler, refrigerated dryer, moisture separator
  • Built-in aftercooler circuit with a separate drain; Lower pressure drops
  • Energy efficient refrigeration compressors
  • DMC Electronic Controller
  • Makes this dryer easy to use
  • Quiet Operation
  • Run at less than 70 dbA sound level
  • 1-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

SMH100-UP
specs product image PID-148510
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
100
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
194
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
113
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1-1/4"
Outlet Fittings
1-1/4"
Aftercooler
Yes
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
Yes
Overview
Product Category
Air Compressor Accessories
Weight
108 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
17.5 Inches
Product Width
35.4 Inches
Product Height
17.3 Inches
Power Type
Electric
