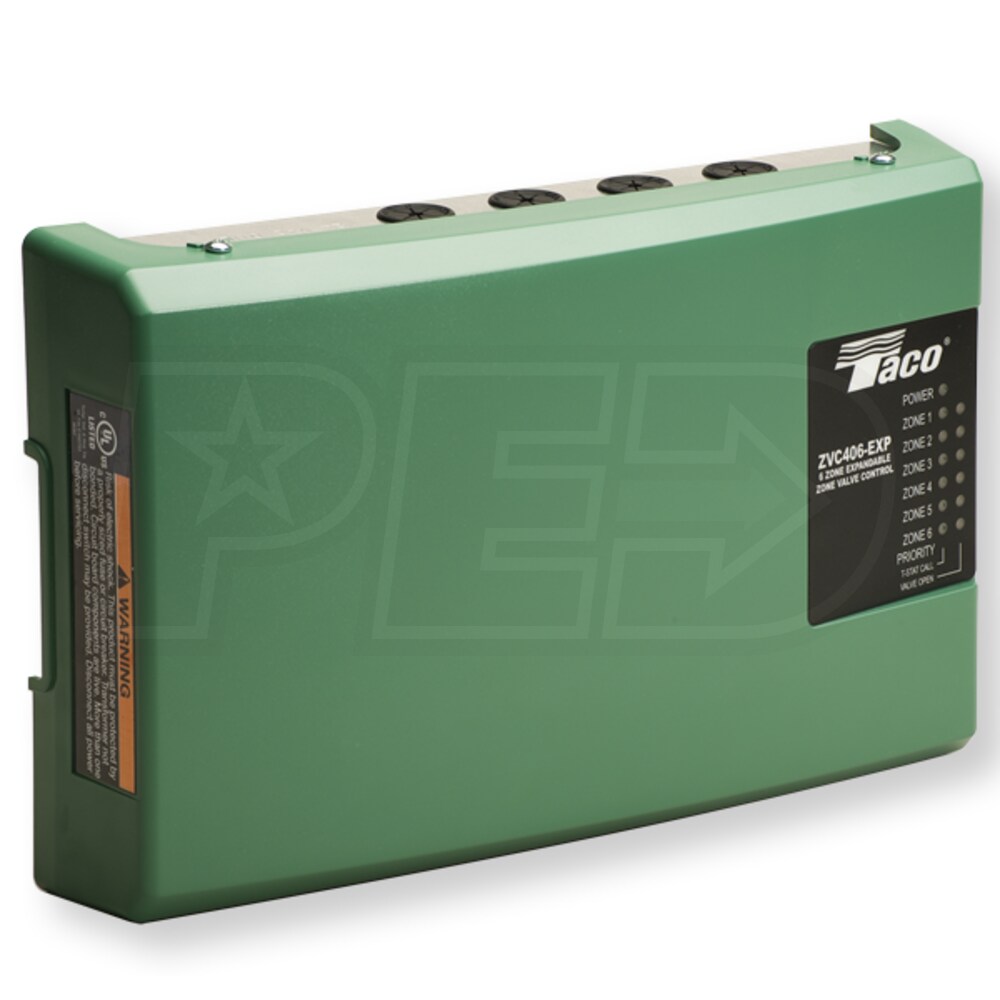

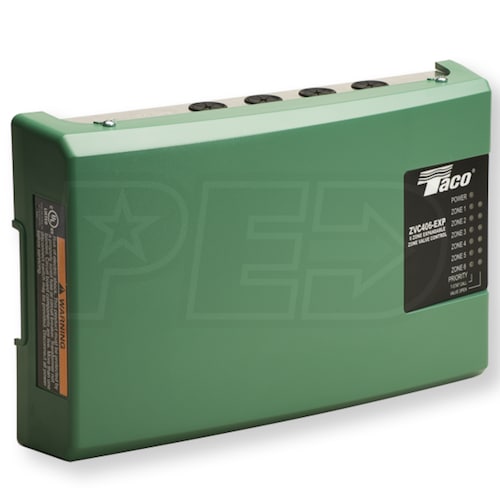

Taco ZVC - Zone Valve Control - Six Zones - Expandable

Model:

ZVC406-EXP-4

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Taco ZVC - Zone Valve Control - Six Zones - Expandable
Taco ZVC - Zone Valve Control - Six Zones - Expandable
Model: ZVC406-EXP-4
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    The ZVC406-EXP-4 is a six zones zone valve control for managing a zoned hydronic system easily and efficiently. Mounting and wiring the ZVC406-EXP-4 is simple thanks to a compact, sturdy enclosure and contractor friendly PC board layout. Post purge and pump exercise operation modes will run your pumps briefly after calls for heat or long periods of inactivity. These improve the efficiency and dependability of your system, respectively. With universal thermostat compatibility, Taco's zone valve controls are easily integrated into any system. In addition to handling zone valves, the ZVC406-EXP-4 also has two end switches for system, secondary, or DHW pumps.
  • Protected Priority Switching
  • With the ZVC404-4, a single zone may be designated as a priority zone whose heating demands are given precedence over other zones. Other demands will be met when the priority zone is satisfied or after sixty minutes of priority operation.
  • Expandable
  • Taco's -EXP zone valve controls may be combined with other zone valve controls or expandable Taco zone switching relays for large scale zoning applications. Up to 20 zoning panels may be connected together.
  • Add-On Power Controls
  • The ZVC406-EXP-4 is compatible with Taco's PC700 line of supplemental controls. It's easy to add outdoor temperature reset via variable speed pump mixing or boiler reset control.
  • Product Compatible With
  • Taco -EXP Expandable Zone Controls
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ZVC406-EXP-4
specs product image PID-33787
General Information
Product Line
ZVC
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
6
UPC
687752857689
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Maximum Load
40 Amps
Dimensions
Product Height
8 Inches
Product Width
12 1/4 Inches
Product Depth
3 Inches
Shipping Weight
8 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
