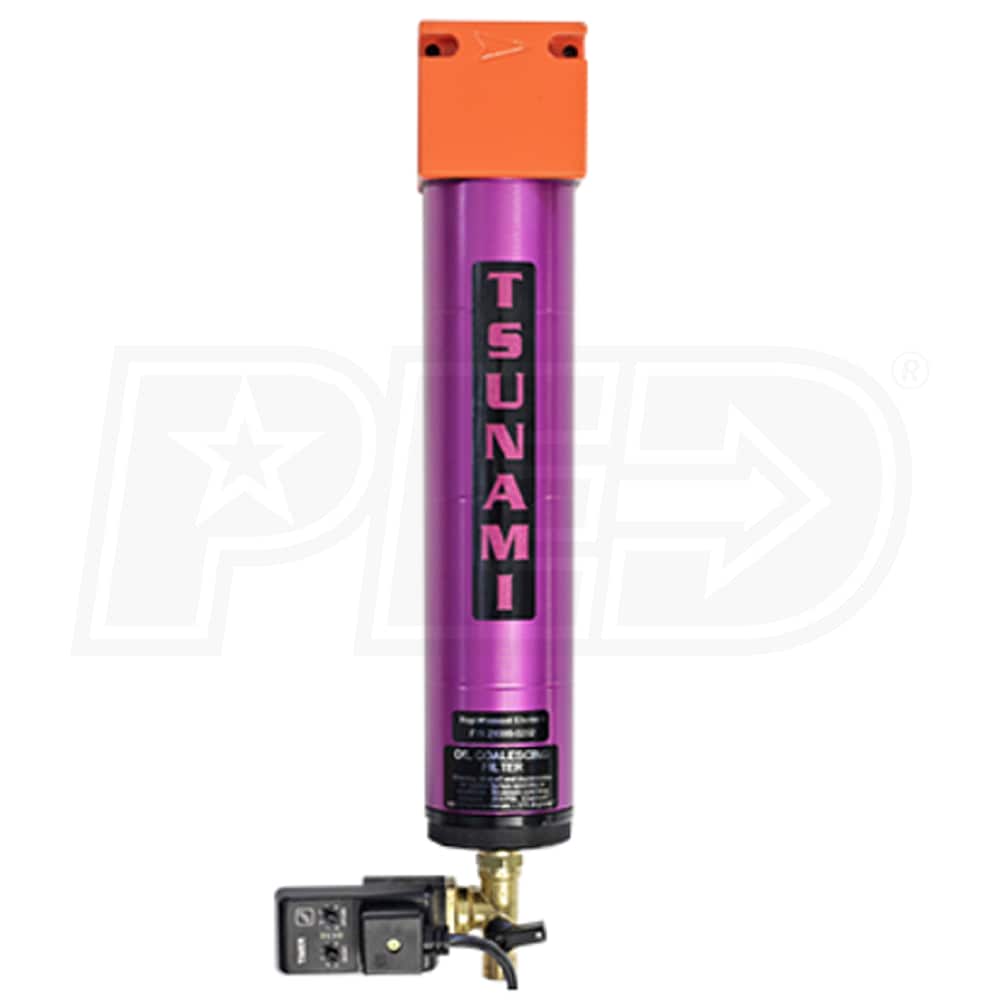

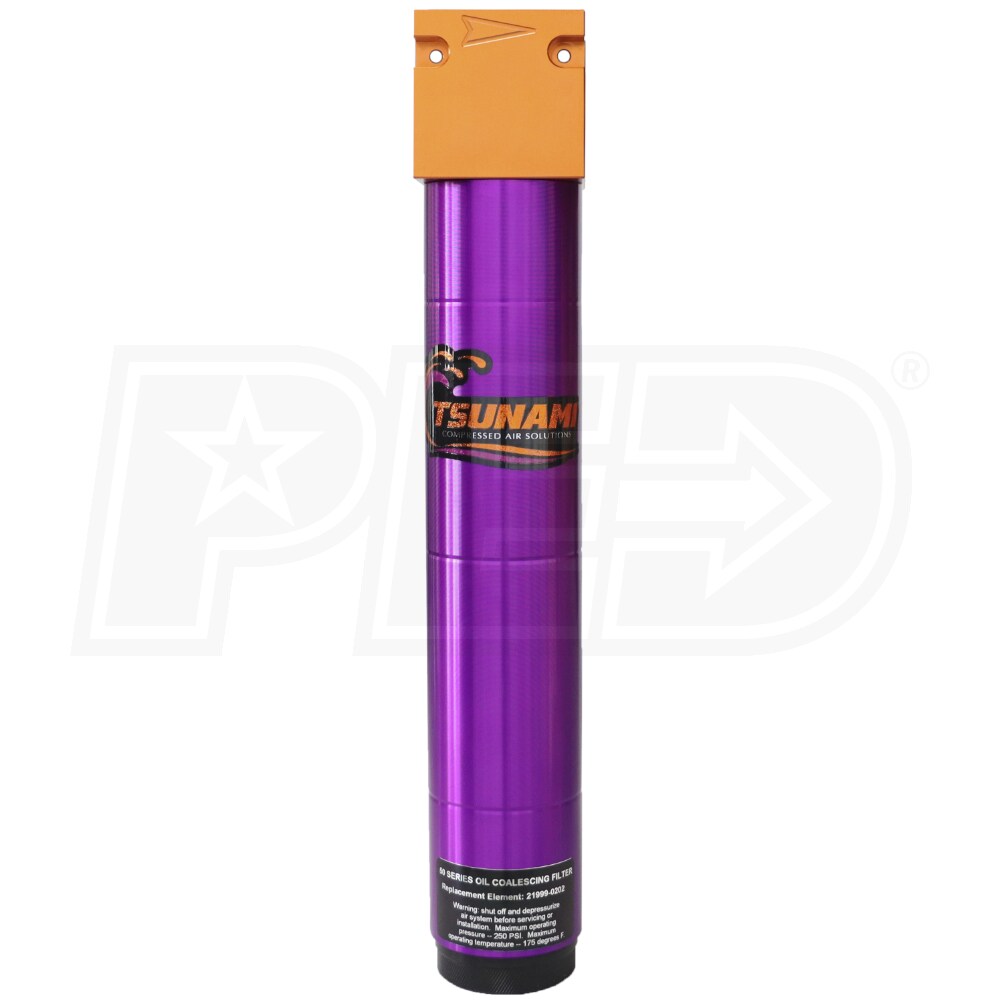

Tsunami 1/4" 250 PSI High Efficiency Oil Coalescing Filter (20 CFM) w/ Float Drain
Model:
21999-0390-Z-FD
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
7
Model: 21999-0177
$104.99
In-Stock
Model: 21999-0390-AC
$164.70
Only 2 In-Stock
Model: 21999-0710
$3,652.20
Factory-Direct
$144.00
Only 2 In-Stock
Model: 21999-0394
$61.20
Only 3 In-Stock
Model: 21999-0868
$169.00
Factory-Direct
Model: 21999-0867
$18.00
Factory-Direct
Features
- Tsunami 20 Series Oil Coalescing Filter
- Protect critical equipment from oil aerosols and particulates
- Removes oil aerosols down to .001 ppm and particulates down to .01 micron
- High Quality & Cutting-Edge Technology
- 1/4" NPT inlet & outlet; 250 PSI & 175°F maximum
- Rigorously tested to outperform expectations regardless of the industry or application
- Non-Wicking Drain Layer
- Secured to the outside support core
- Separates oil and water from the air flow and drain the liquid to the filter sump
- Zamak Anodized & Powder Coated Head w/ Oversized Casing
- Designed to handle large surges of water
- Machined from 6061 aircraft aluminum for corrosion protection
- Chemical-resistant polypropylene cores and layers support coalescing media
- Integral Automatic Float Drain
- Ejects water from large drain sump
- Easy-to-service with minimal maintenance required
- Bottom Cap Has Elevated Sump
- Allows sediment to accumulate & extends filter life
- Can be easily removed to service drain when needed
- Threaded for optional electronic drain (sold separately)
- ***Mounting Brackets Sold Separately For Individual Filters***
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
21999-0390-Z-FD
General Information
Product Category
Air Compressor Accessories
Filter
Filter CFM
20
Oil Coalescing
Yes
Inlet Fittings
1/4"
Outlet Fittings
1/4"
Fitting Size
1/4"
High Efficiency
Yes
Overview
Product Category
Air Compressor Accessories
Weight
1.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Depth
2 Inches
Product Width
2 Inches
Product Height
8.5 Inches
Reviews
(1)
Tsunami 21999-0390-Z-FD Reviews & Ratings
When used with a General Purpose (1 micron) air filter, this Tsunami High Efficiency Oil Coalescing filter will remove many types of particles larger than 0.01 micron in size. Water is removed in addition to airborne oil & dust particles.

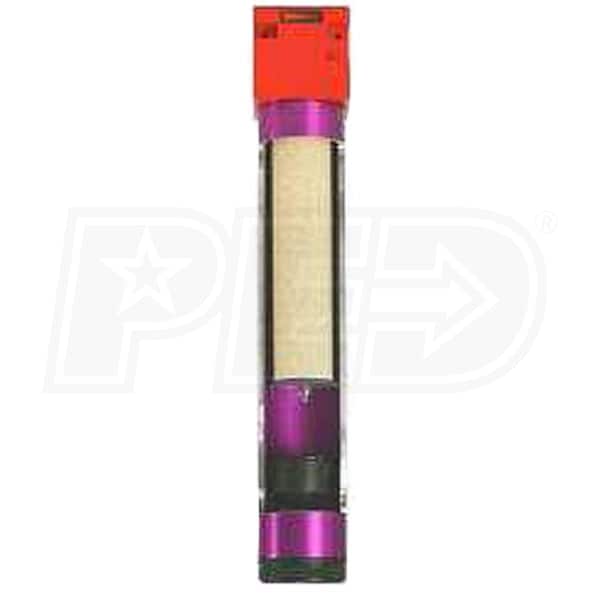

The replaceable filter element is made of resin-bonded 100% borosilicate glass microfibers which removes 99.99% of .01 micron particles & droplets for maximum quality air.
The replaceable filter element is made of resin-bonded 100% borosilicate glass microfibers which removes 99.99% of .01 micron particles & droplets for maximum quality air.
