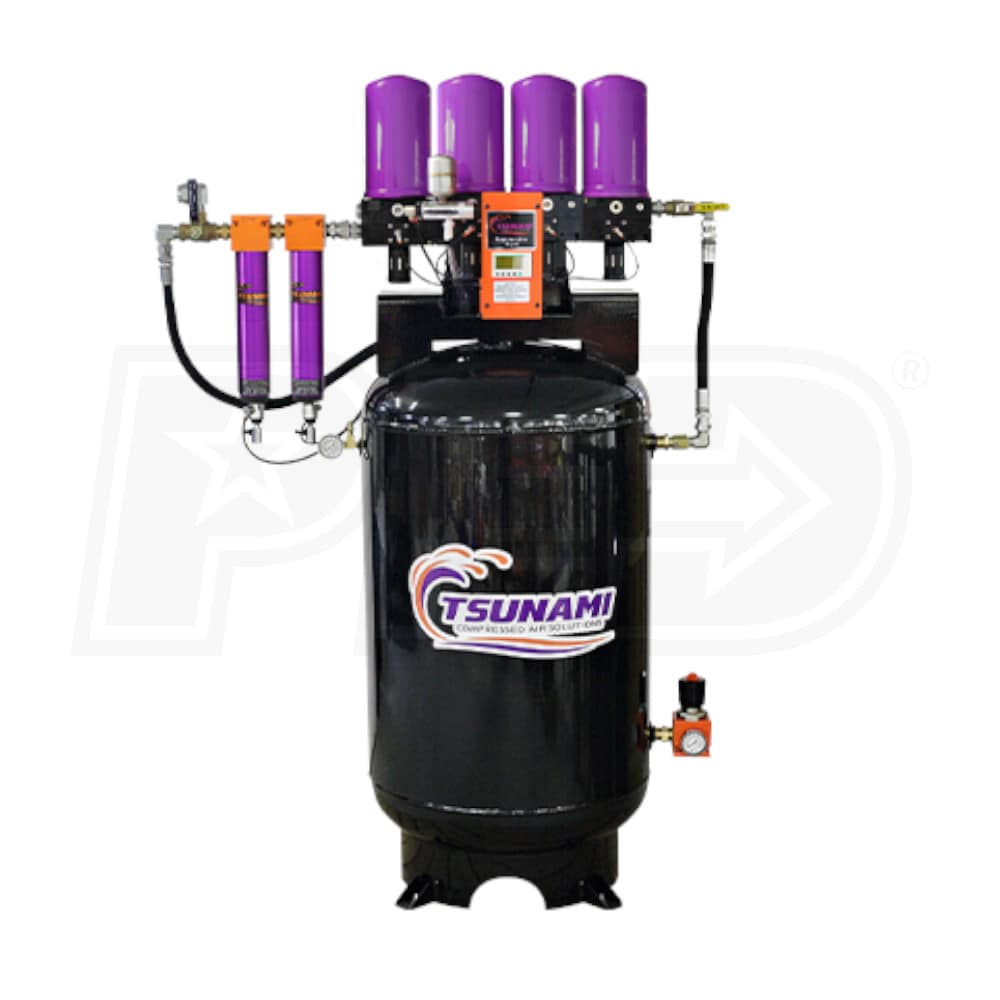

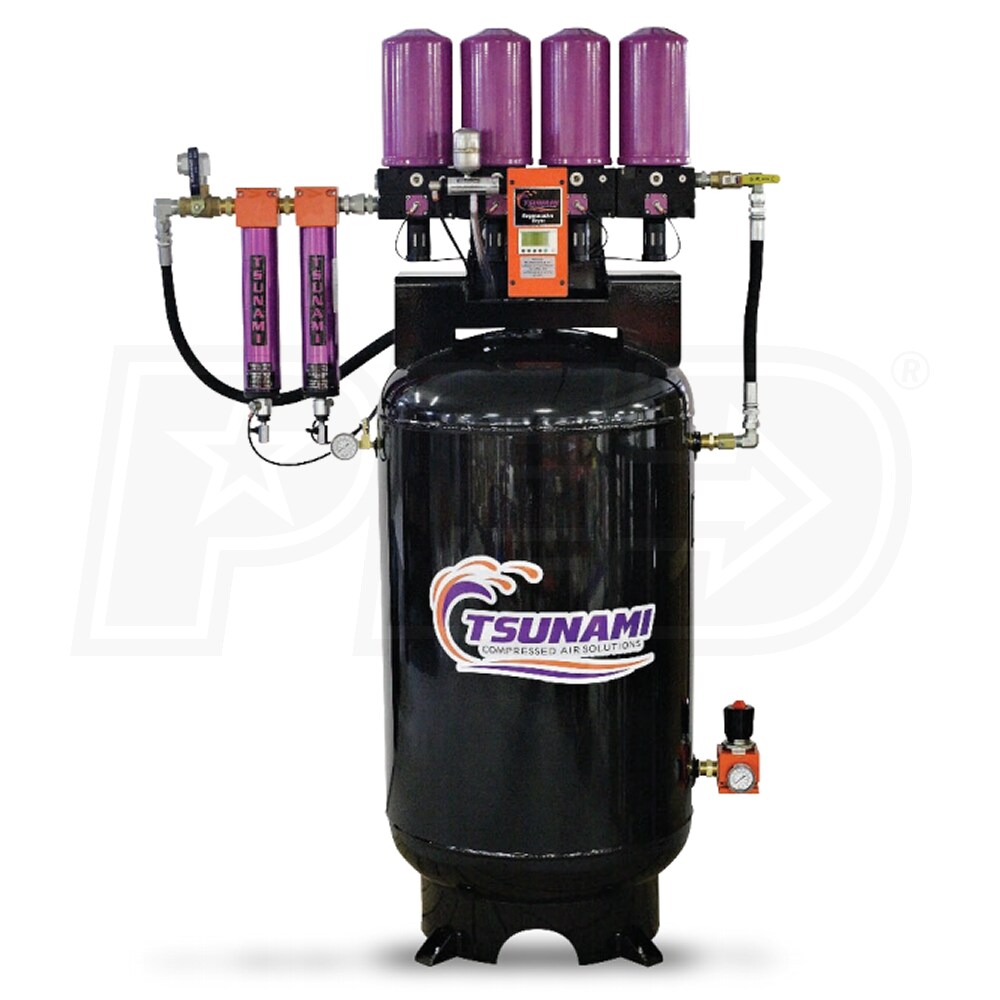

Tsunami 1" Ultra Series 20-HP 80-Gallon Tank Mounted Regenerative Air Dryer (80 CFM) w/ Moisture Minder Pneumatic Drain

Model:

21999-0820

Write A Review
$8,289.90
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks

Tsunami 1
Tsunami 1" Ultra Series 20-HP 80-Gallon Tank Mounted Regenerative Air Dryer (80 CFM) w/ Moisture Minder Pneumatic Drain
Model: 21999-0820
$8,289.90
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

N/A

Tank Size

80

Air Dryer CFM

80
  • ***Air Compressor Not Included***
  • Ultra Series Tank Mounted Dryer
  • Comes fully assembled for easy installation
  • The optimal solution for any facility; simply connect shop air into the inlet fitting and out the regulator
  • Regenerative Dryer
  • Handles up to 150°F inlet air temperature
  • Delivers very dry, clean air down to -80°F dew point
  • Pre-filtration to assure removal of water, oil, and particulates before entering the dryer
  • Stage 1: Water Separator
  • Filters particulate down to 10 microns
  • Removes water up to one quarter per minute
  • Stage 2: Oil Coalescing Filter
  • Non-wicking layer collects & drains oils preventing entrainment
  • Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
  • Built-In Bypass System
  • Allows the dryer to be shutoff for maintenance or service without stopping production
  • 80-Gallon Tank
  • Ready-to-use air w/ regulator and pressure gauge
  • Allows compressed air system to increase capacity by storing
  • Moisture Minder Pneumatic Drains
  • Automatically eliminates water & oil in the filter sumps
  • Valve operates without pressure drop in air system
  • Programmable Logic Control (PLC)
  • Controls the cycling of the dryers for efficient operation
  • Great for mobile operations; auto paint, powder coating, etc.
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

21999-0820
specs product image PID-108983
General Information
Product Category
Air Compressor Accessories
Tank
Tank Size
80 Gallons
Tank Orientation
Vertical
Filter
Filter Combination
Yes
Regulator
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
80
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
175
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
150
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
Yes
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
335 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
51 Inches
Product Width
28 Inches
Product Height
69 Inches
Power Type
Electric
