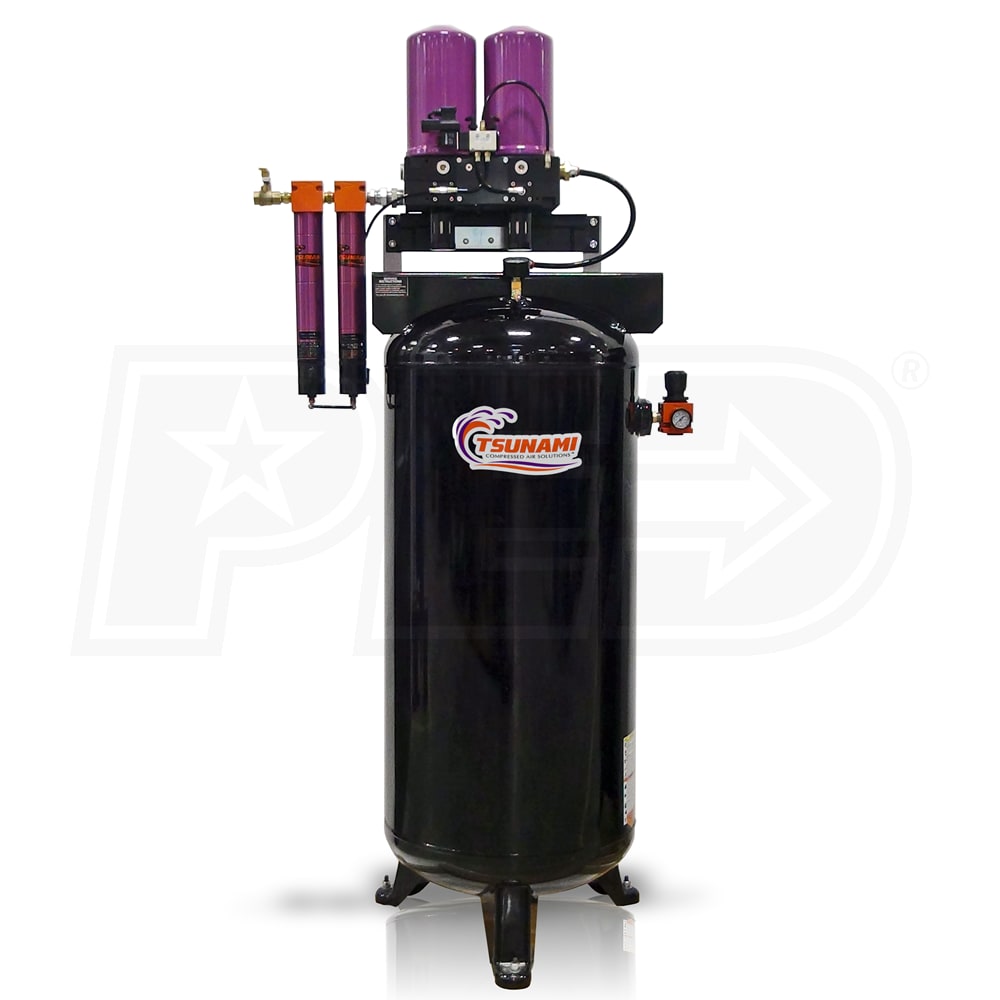

Tsunami Pure-10T Series 10-HP 60-Gallon Tank Mounted Regenerative Air Dryer (40 CFM) w/ Moisture Minder Pneumatic Drain (220V)

Model:

21999-0955-220

Write A Review
$4,012.20
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-3 Weeks

Tsunami Pure-10T Series 10-HP 60-Gallon Tank Mounted Regenerative Air Dryer (40 CFM) w/ Moisture Minder Pneumatic Drain (220V)
Tsunami Pure-10T Series 10-HP 60-Gallon Tank Mounted Regenerative Air Dryer (40 CFM) w/ Moisture Minder Pneumatic Drain (220V)
Model: 21999-0955-220
$4,012.20
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

N/A

Tank Size

60

Dryer Voltage

230V 1-Phase

Air Dryer CFM

40
  • ***Air Compressor Not Included***
  • Tsunami 40 CFM Tank Mounted Regenerative Dryer System
  • Delivers very dry, clean air down to -80°F dew point
  • Pre-filtration to assure removal of water, oil, and particulates before entering the dryer
  • Compact, Expandable Design
  • Comes complete with pre-filter, auto drains, & mount bracket
  • Great for mobile operations; auto paint, powder coating, etc.
  • Stage 1: Water Separator
  • Water and particulates are removed down to 10 micron
  • Stage 2: Oil Coalescing Filter
  • Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
  • 1/2 " Inlet & 1/2" Tank Outlet NPT Connectors
  • Maximum inlet pressure is 175 PSI
  • Requires connection to 220-volt outlet
  • Handles up to 150°F inlet air temperature
  • Moisture Minder Pneumatic Drains
  • Automatically eliminates water & oil in the filter sumps
  • 60-Gallon Air Tank
  • Allows compressed air system to increase capacity by storing
  • Ready-to-use air w/ regulator and pressure gauge
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

21999-0955-220
specs product image PID-108990
General Information
Product Category
Air Compressor Accessories
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Tank Orientation
Vertical
Filter
Filter Combination
Yes
Regulator
Yes
Water Separator
Yes
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Dryer Voltage
230V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
40
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
175
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
150
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
Yes
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
190 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
72 Inches
Product Depth
36 Inches
Product Width
24 Inches
Power Type
Electric
