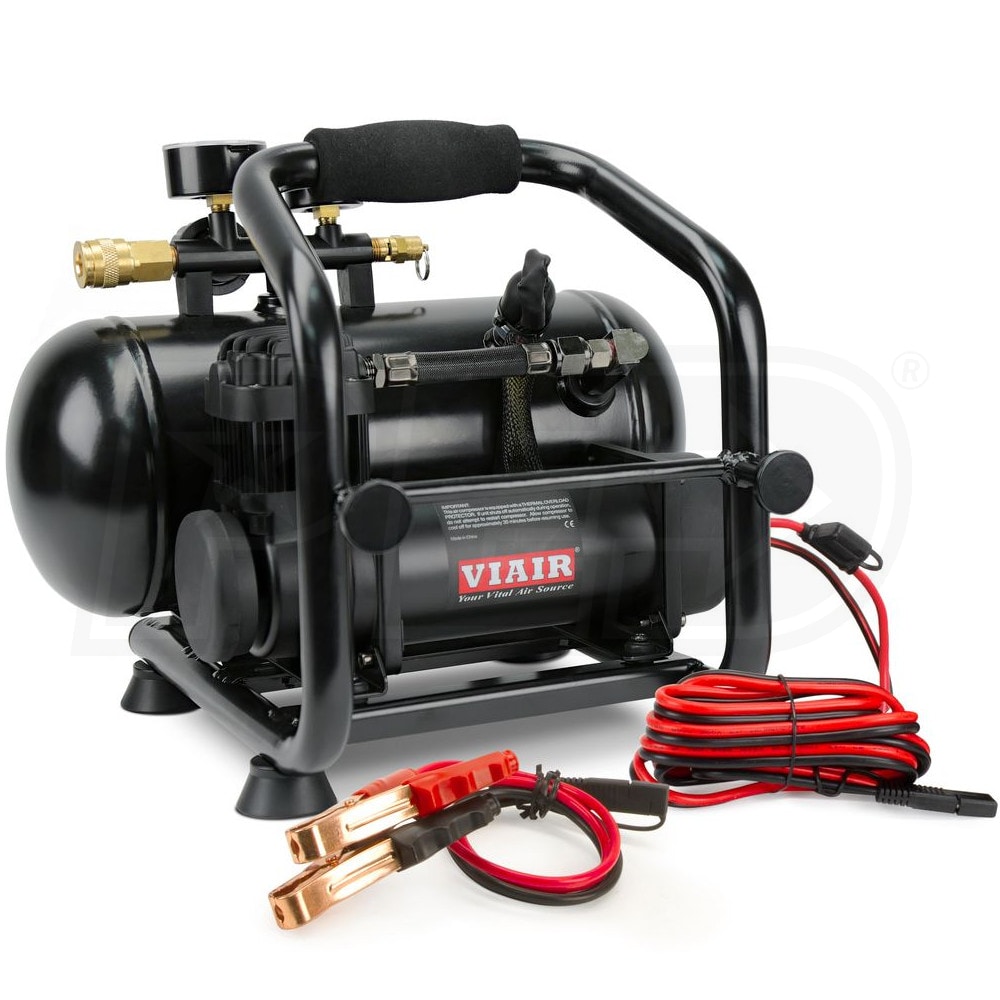

VIAIR 380C 12-Volt 1.5-Gallon 200-PSI Plug-N-Play Air Compressor Kit w/ Alligator Clamps (100% Duty Cycle @ 100 PSI)

Model:

38034

Write A Review
$289.95
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

VIAIR 380C 12-Volt 1.5-Gallon 200-PSI Plug-N-Play Air Compressor Kit w/ Alligator Clamps (100% Duty Cycle @ 100 PSI)
VIAIR 380C 12-Volt 1.5-Gallon 200-PSI Plug-N-Play Air Compressor Kit w/ Alligator Clamps (100% Duty Cycle @ 100 PSI)
Model: 38034
$289.95
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

DC Compressors

CFM

.88

Tank Size

1.5

  • 200 PSI Plug-N-Play On-Demand Portable

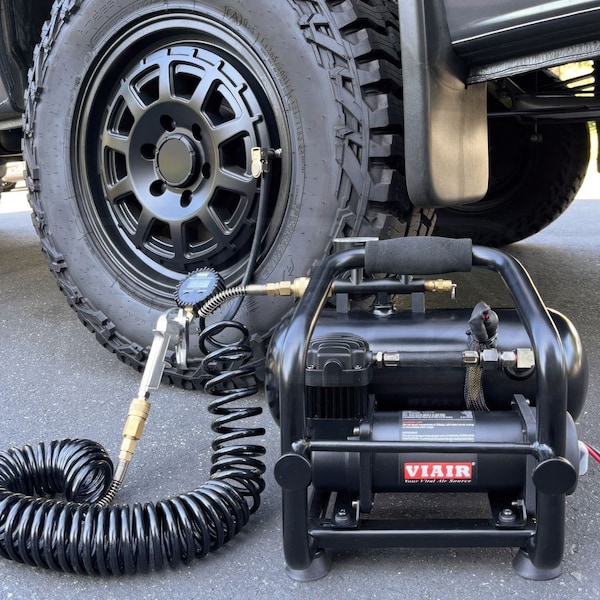

  • Optimal solution for any enthusiast needing fast tire inflation on the go
  • All you need is a vehicle's battery to connect the alligator clamps for power
  • Pre-Wired Sealed Pressure Switch (165 PSI On, 200 PSI Off)
  • 40-amp relay and appropriately rated fuse is strongly recommended
  • Preserves the life of the pressure switch
  • 100% at 100 PSI Duty Cycle (55% at 200 PSI)
  • Fills 0 to 200 PSI in 5 minutes, 30 seconds (±10 sec)
  • Fills 165 to 200 PSI in 1 minute, 25 seconds (±5 sec)
  • 1 hour run-time at 100%; 30 minutes on, 30 minutes off at 50%

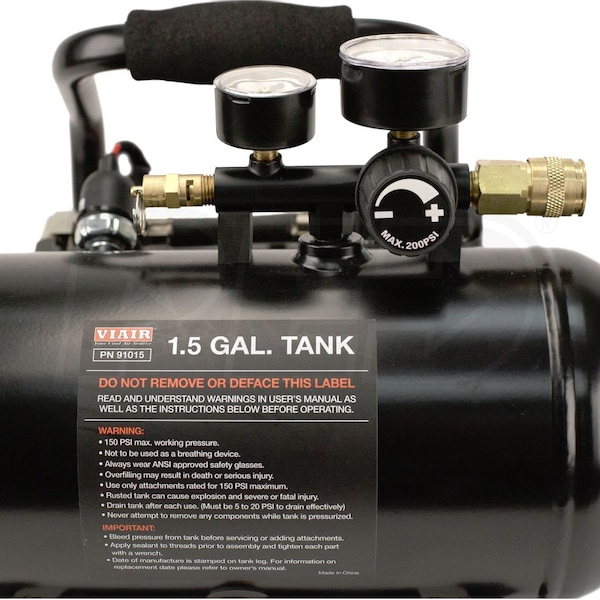

  • 1.5-Gallon Tank (200 PSI)
  • Convenient handle for easy mobility
  • Includes 1/4” auto quick connect coupler and drain cock

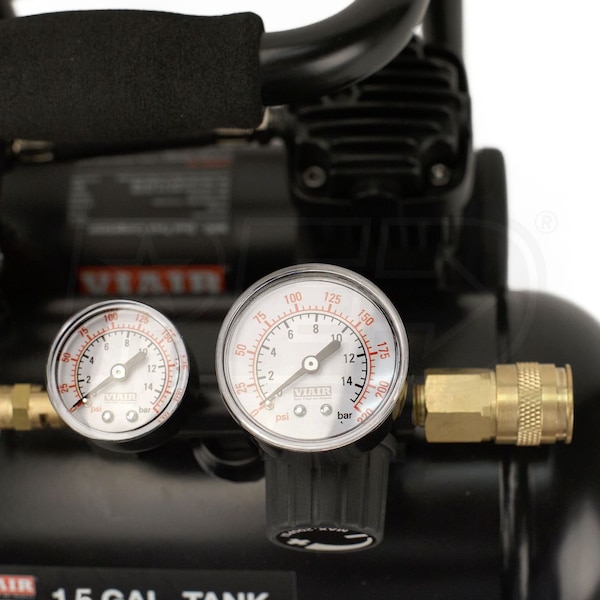

  • Tank pressure gauge, pressure regulator & safety valve for protection

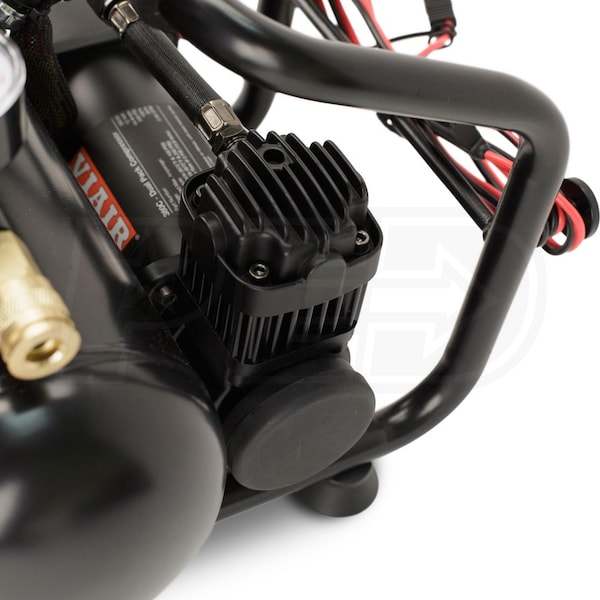

  • Permanent Magnetic Motor w/ Thermal Overload Protector
  • Prevent amp spikes from harming the system
  • Vehicle engine must be running during operation to maintain performance
  • Compact & Versatile
  • IP-Rated resist dust & water
  • Weighs only 23 pounds to suit a wide variety of applications
  • Specifications:
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F
  • Includes 2-Pin SAE Connector Attachment w/ Aligator Clamps
  • 1 Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

38034
specs product image PID-153668
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
23
Engine
HP
.25
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
.88
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
1.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
23.25 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
14 Inches
Product Width
14 Inches
Product Height
12 Inches
Power Type
Electric
UPC
818114002458
