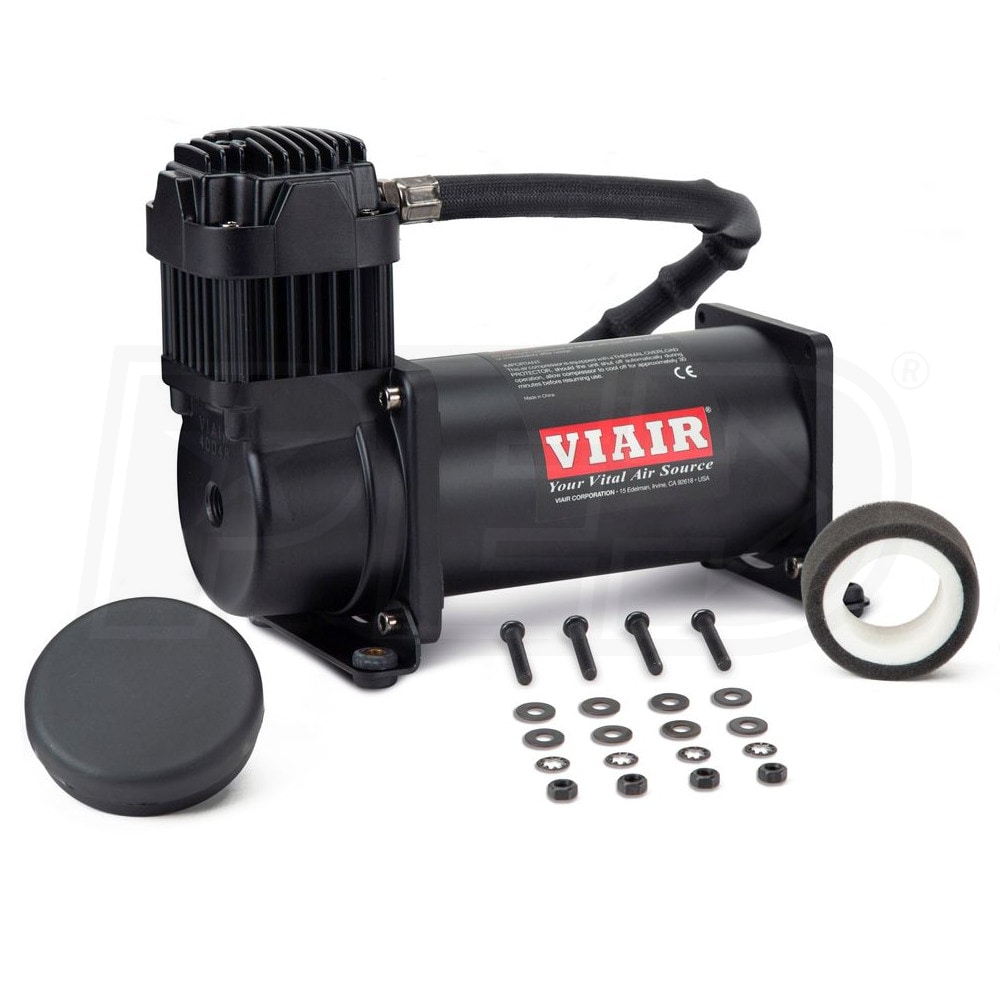

VIAIR Single 400C VMS 12-Volt 150-PSI High Performance Air Compressor - Stealth Black (Duty Cycle 33% @ 100 PSI)

Model:

400SB

Write A Review
$199.95
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
VIAIR Single 400C VMS 12-Volt 150-PSI High Performance Air Compressor - Stealth Black (Duty Cycle 33% @ 100 PSI)
VIAIR Single 400C VMS 12-Volt 150-PSI High Performance Air Compressor - Stealth Black (Duty Cycle 33% @ 100 PSI)
Model: 400SB
$199.95
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

DC Compressors

CFM

1.52

Tank Size

0

  • Single VIAIR Mounted System (VMS) High Performance Compressor
  • Lightweight and quiet onboard air system suits many applications
  • Set of nuts, bolts washers and lock washers included
  • Provides high CFM flow and fast tire fill with unsurpassed durability
  • Permanent Magnetic Motor w/ Thermal Overload Protector
  • Prevent amp spikes from harming the system
  • Complete wiring harness with 35A micro relay and 40A maxi blade fuse
  • Vehicle engine must be running during operation to maintain performance
  • 100% at 40 PSI Duty Cycle (33% at 100 PSI)
  • Duty cycle rated at 72° F; Max 5-gallon air tank size recommended
  • 1 hour run-time at 100%; 30 minutes on, 30 minutes off at 50%
  • High-Quality & Reliable Components
  • Stainless steel braided leader hose with inline check valve
  • Air filter assembly with spare air filter element captures debris
  • Tire Fill Rates (35 & 37 x 12.5”):
  • 35" - 0 to 40 PSI: 7 min. 09 sec. (±15 sec.) & 10 to 40 PSI - 5 min. 29 sec. (±10 sec.)
  • 37" - 0 to 40 PSI: 8 min. 15 sec. (±15 sec.) & 10 to 40 PSI - 6 min 19 sec. (±10 sec.)
  • Unit Max Ambient Temp: +158°F & Min Ambient Temp: -40°F
  • IP67 Ingress Protection Rating
  • Resist dust & water for longer life span
  • 1-Year Limited Factory Warranty
  • Protects your investment from defects in materials and workmanship
  • Recommended Components (Sold Separately)
  • VIAIR System Installation Kit
  • Tire Inflation Kit, Air Tank & Inline Pressure Regulator
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

400SB
specs product image PID-153662
Engine
HP
.25
Motor
Voltage
12 Volt DC
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
30
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
1.52
CFM Rated @
90 PSI
CFM @ 40 PSI
2.01
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
33%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
8.65 Pounds
Consumer Warranty
1 Year
Product Length
9 Inches
Product Width
4 Inches
Product Height
6.75 Inches
Power Type
Electric
UPC
818114002830
