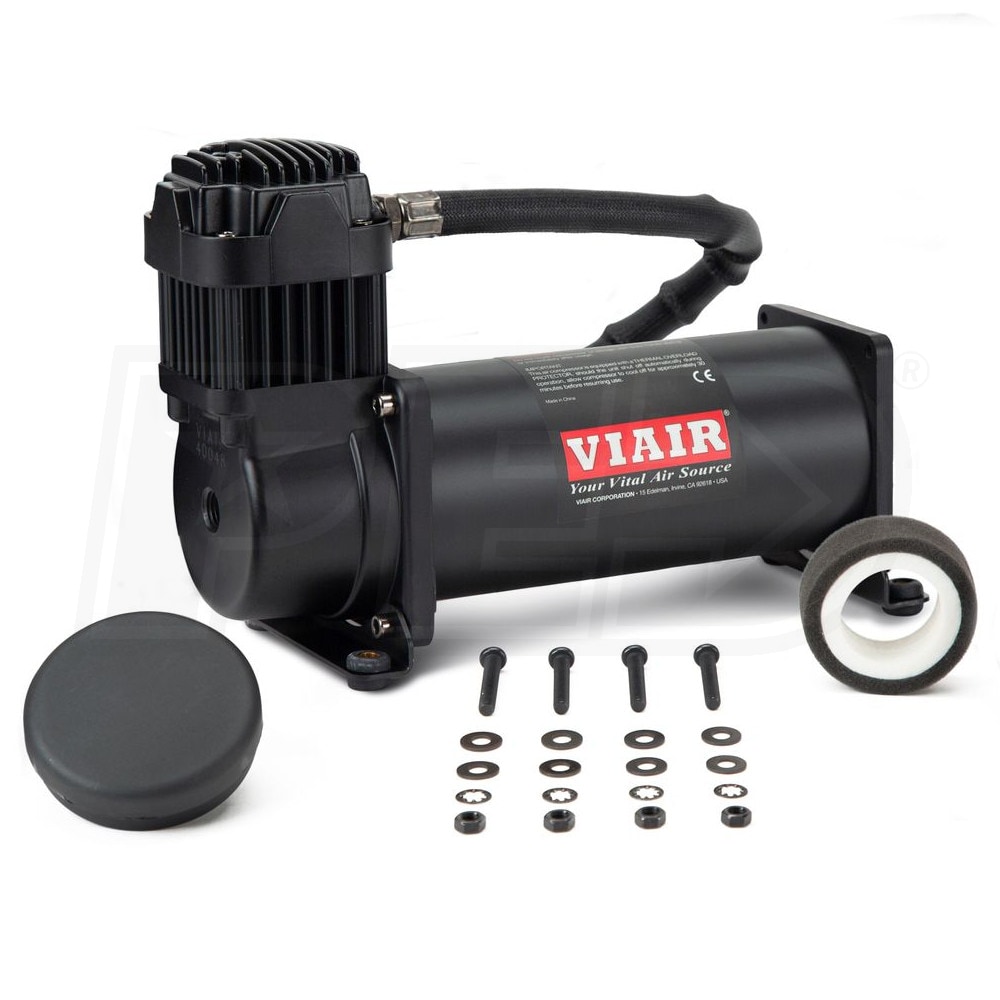

VIAIR Single 444C VMS 12-Volt 200-PSI High Performance Air Compressor - Stealth Black (Duty Cycle 100% @ 100 PSI)
Model:
444SB
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
DC Compressors
CFM
1.13
Tank Size
0
- Single VIAIR Mounted System (VMS) High Performance Compressor
- Lightweight and quiet onboard air system suits many applications
- Set of nuts, bolts washers and lock washers included
- Provides high CFM flow and fast tire fill with unsurpassed durability
- Permanent Magnetic Motor w/ Thermal Overload Protector
- Prevent amp spikes from harming the system
- Complete wiring harness with 35A micro relay and 40A maxi blade fuse
- Vehicle engine must be running during operation to maintain performance
- 100% at 100 PSI Duty Cycle (50% at 200 PSI)
- Duty cycle rated at 72° F; Max 5-gallon air tank size recommended
- 1 hour run-time at 100%; 30 minutes on, 30 minutes off at 50%
- High-Quality & Reliable Components
- Stainless steel braided leader hose with inline check valve
- Air filter assembly with spare air filter element captures debris
- Tire Fill Rates (35 & 37 x 12.5”):
- 35" - 0 to 40 PSI: 8 min. 37 sec. (±15 sec.) & 10 to 40 PSI - 6 min. 31 sec. (±10 sec.)
- 37" - 0 to 40 PSI: 9 min. 43 sec. (±15 sec.) & 10 to 40 PSI - 7 min. 29 sec. (±10 sec.)
- Unit Max Ambient Temp: +158°F & Min Ambient Temp: -40°F
- IP67 Ingress Protection Rating
- Resist dust & water for longer life span
- 1-Year Limited Factory Warranty
- Protects your investment from defects in materials and workmanship
- Recommended Components (Sold Separately)
- VIAIR System Installation Kit
- Tire Inflation Kit, Air Tank & Inline Pressure Regulator
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
444SB
Engine
HP
.25
Motor
Voltage
12 Volt DC
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
23
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
1.13
CFM Rated @
90 PSI
CFM @ 40 PSI
1.48
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
10.8 Pounds
Consumer Warranty
1 Year
Product Length
10.87 Inches
Product Width
4.2 Inches
Product Height
7.06 Inches
Power Type
Electric
UPC
818114002878
