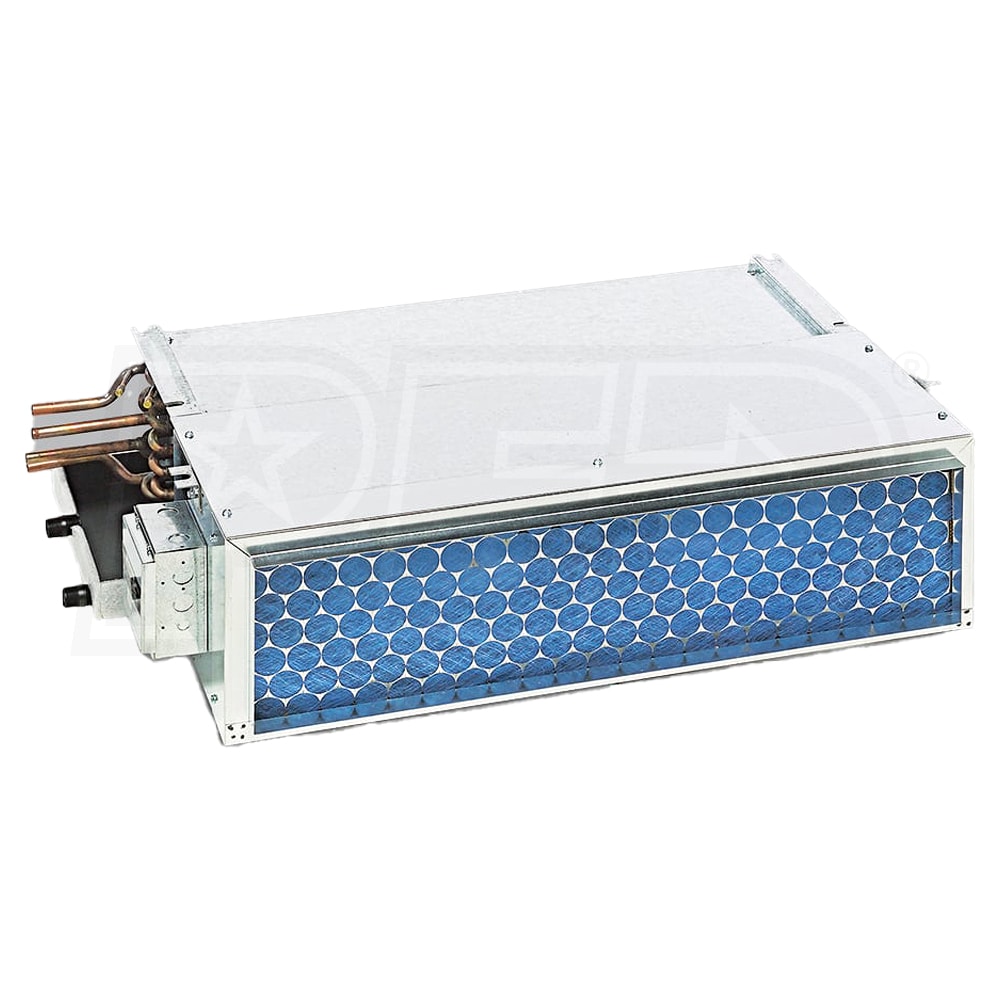

Williams - LH-R Series - 2 Ton - Horizontal Fan Coil - Four Pipe Hydronic - Rear Return Air Plenum - Right Hand - 120V/60Hz/1 Phase
Model:
H008W4R411R000
+
Share This Product
Features
- Quality Insulation and Materials
- Features heavy gauge cold rolled steel cabinet with 3.35 PCF density 1/2" fiberglass insulation and 1/2" OD copper coils, tested at 350 PSIG high pressure.
- Durable Coil Construction
- Coils made of copper tube with aluminum fins, pressure tested at 350 PSI to ensure durability and long-lasting performance.
- Salt-Spray Tested Drain Pan
- Galvanized drain pan with epoxy powder coating, subjected to a 650-hour salt spray test for corrosion resistance.
- Reliable Motor
- Three-speed PSC motor with quick connect plug for easy installation and dependable operation.
- Air Duct Openings
- One inch reinforced duct collar on return and supply air openings.
- Noise Reduction Technology
- Units come with sound power level data tested in compliance with industry standards for quiet performance.
Williams, a leading HVAC solutions provider, has been delivering quality heating and cooling solutions since 1916. With a commitment to innovation and quality, Williams offers a wide range of products including gas-fired heating, gravity wall heating, and fan coils. Williams manufactures their products using state-of-the-art machinery and adhering to the highest safety standards. With a long-standing reputation for excellence Williams is dedicated to providing industry-leading products and exceptional customer service for both residential and commercial applications. The LH-R horizontal with return air plenum is a simple model with a rear return air plenum, suitable for installation above ceilings or in closets, hallways, and bathrooms. The plenum hides the blower motor, which can be easily accessed for servicing by removing the bottom panel. The four-pipe hydronic system consists of a distribution system that features both hot water supply and return lines, as well as chilled water supply and return lines. This fan coil also offers a dedicated right hand connection to provide a larger space for valve packages and controls.
California residents see
Warning: This product can expose you to chemicals including Epichlorohydrin which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
H008W4R411R000
General Information
Type
Fan Coil
Product Line
LH-R Series
Product Category
Hydronic Air Handler
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
UPC
93909017781
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Nominal Minimum Cooling Capacity
20823 BTU
Nominal Maximum Cooling Capacity
28182 BTU
Maximum Air Flow
767 CFM
Maximum Flow Rate
5.6 GPM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Cold Water Inlet
1/2 Inch
Hot Water Inlet
3/4 Inch
Product Height
12 3/16 Inches
Product Width
44 Inches
Product Depth
26 3/8 Inches
Product Weight
165 Pounds
Shipping Weight
202 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ASTM Certified
Yes
NFPA Rated
NFPA Rated
The National Fire Protection Association has developed a system for indicating the health, flammability and reactivity hazards of some chemicals.
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
