Zoeller BN53 - 1/3 HP Cast Iron Submersible Sump Pump w/ Tether Float Switch
Model:
53-0029
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
2680 Gallons
Switch Type
Piggy-Back Tether
- Non-Automatic Submersible Sump Pump w/ Piggyback Float Switch
- Ideal for average water removal
- Piggyback Variable Level Float Switch w/ 15' Cord
- Fully-adjustable, can accommodate longer pump cycles
- Cast Iron Switch Case, Motor & Pump Housing
- Designed for rapid heat dissipation and extended life
- Engineered Thermoplastic Base
- Offers years of reliable, trouble-free operation
- Thermally Protected Motor
- Oil-filled and hermetically sealed to prevent overheating
- Carbon & Ceramic Shaft Seal
- Assures maximum protection for extended pump life
- Clog-Resistant Design
- No screen to interfere with flowing debris
- Capable of passing 1/2" diameter solids
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
53-0029
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

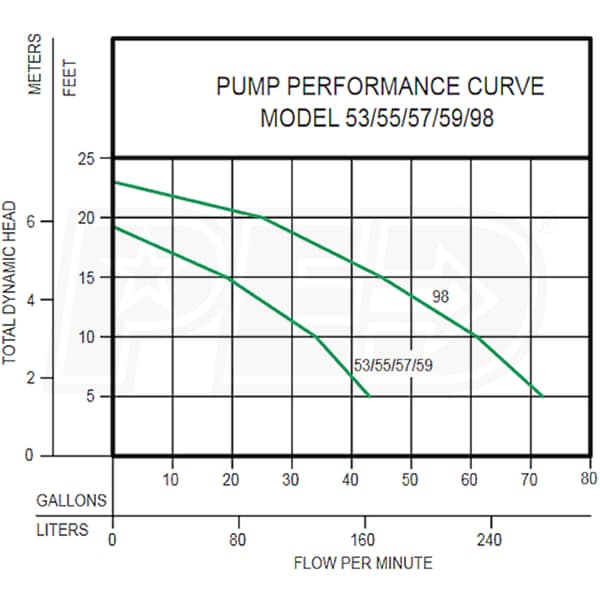

GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
24 Pounds
Consumer Warranty
3 Years
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
UPC
053514023812
