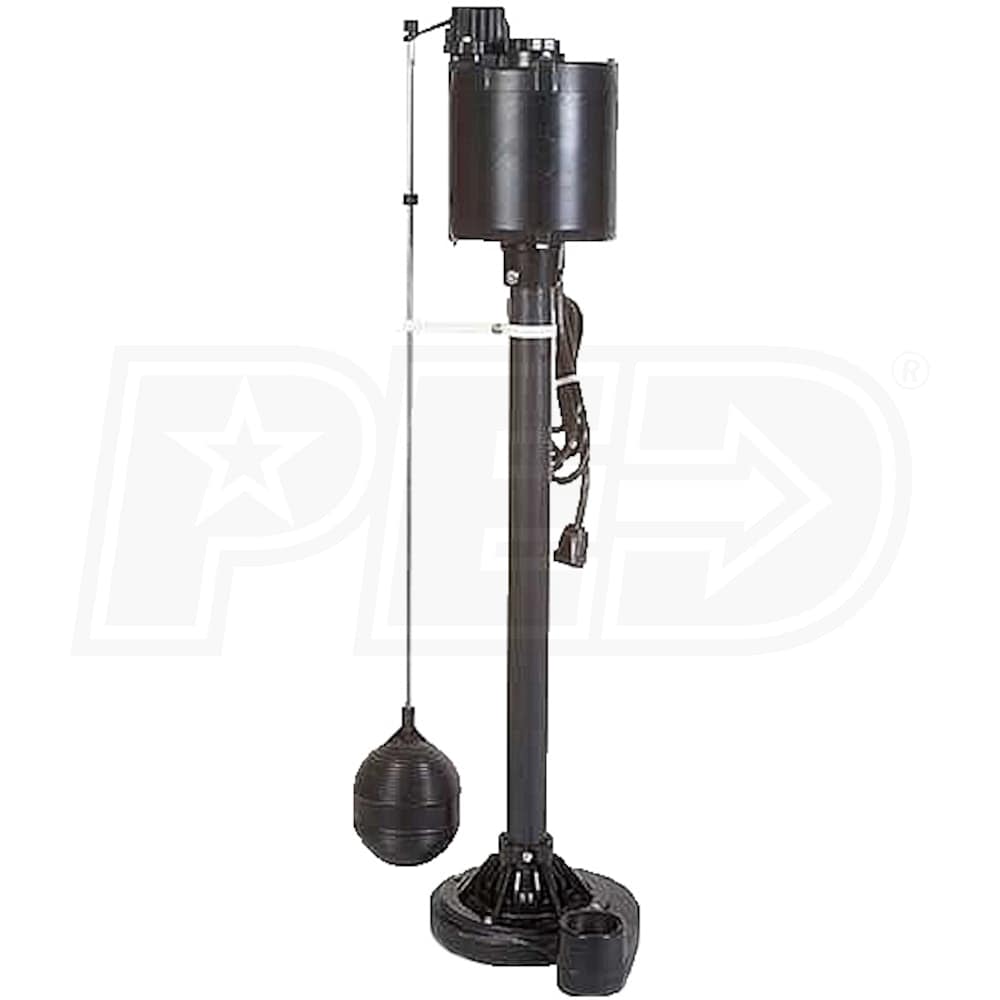

Zoeller M82 - 1/3 HP Cast Iron Pedestal Sump Pump w/ Vertical Float Switch
Model:
82-0001
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
3000 Gallons
Switch Type
Vertical
- Zoeller "Old Faithful: Cast Iron Pedestal Pump
- Traditional design for a reliable basement sump pump
- Energy Efficient 1/3 HP SP Motor - Only Uses 4-Amps
- Air-cooled, Thermal overload protection w/ Auto reset
- Cast Iron Pump Housing & Base Construction w/ PVC Column
- Minimizes corrosion in high mineral content water
- Adjustable, 12" Cycle Vertical Float Switch (Factory Set @ 9")
- Max "On" @ 16" and Min. Off @ 4"; Easily set your perfect cycle
- Non-Clogging Vortex Plastic Impeller
- Top intake design, no screens to clean or replace, passes lint
- 1-1/2" NPT Female Discharge
- Compatible with existing discharge line for easy installation
- Perm. Lubricated Upper Sleeve Bearing w/ Lower Bronze Bushing
- Quiet, smoother operation for extended pump life
- 7.5' Power Cord
- UL Listed 3-wire cord and plug
- * Note* Indoor Use Only, Non-Submersible
- 2-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
82-0001
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.7
Thermal Protection
Yes
Power Cord Length
6 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Vertical Float

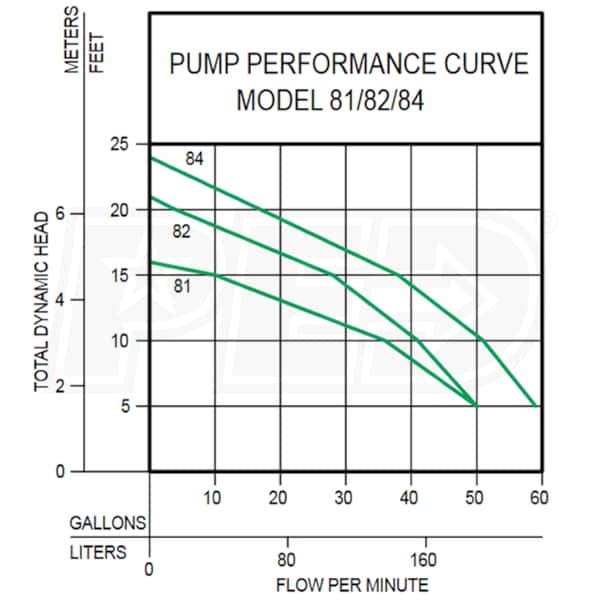

GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2400
GPH @ 15 feet
1600
GPH @ 20 feet
240
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
Adj. 16 Max.
Float Off
Adj. 4 Min.
Manual Override
No
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
19 Pounds
Consumer Warranty
2 Years
UPC
053514024680
