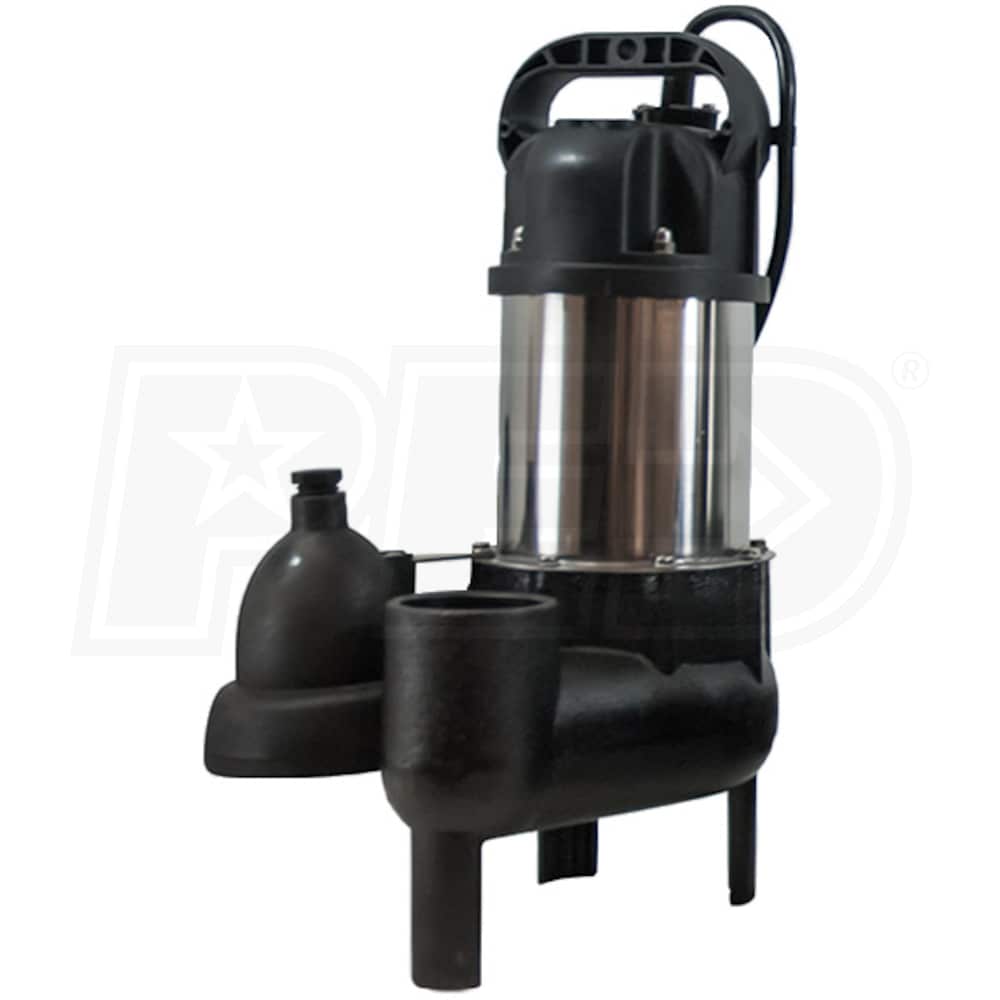

iON SHV40I - 1/2 HP Stainless Steel Residential Sewage Pump (2") w/ ION Digital Level Control MHP20160
Model:
SHV40i
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jim, our Expert
Optional Accessories
7
$1,757.00
Factory-Direct
Model: 10STANDARD
$99.99
Factory-Direct
Model: 14942914
$47.00
Only 2 In-Stock
Model: 99529
$24.99
In-Stock
$123.00
Only 2 In-Stock
$39.00
In-Stock
Model: IN-SPB1-1
$11.00
Factory-Direct
Features
Style
Sewage Pump
GPH
5400 Gallons
Switch Type
Ion
- Automatic Submersible Sewage Pump
- Designed for residential and light commercial applications
- Stainless Steel Construction
- Min Basin Size 18" X 30"
- ION Digital Level Control (6" On/Off Diff.)
- First of a kind solid-state sensing technology w/ no moving parts
- 1/2 HP Thermally Protected Motor
- Oil-filled design, prevents overheating to extend pump life
- Cast Iron Vortex Style Impeller
- Easily pass solids up to 2-inches in diameter
- Stainless Steel Rotor Shaft w/ Carbon Ceramic Seal
- With permanently lubricated ball bearings for extended pump life
- Poly Resin Top Cap and Handle
- Made for easy installation and maintenance
- Piggyback Pump and Switch Cord Assembly
- Made for easy serviceability
- 20-Foot Power Cord
- Great for outdoor applications
- 3-Year Warranty
- *Note - (IN-SPB1-1) Required For Mounting Sensor On Pipe
Specifications
SHV40i

General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
16
Pump
Housing Material
Stainless Steel
Solids Handling Size
2 inch
Float Type
Ion Sensor
GPH @ 0 feet
5400
GPH @ 5 feet
4920
GPH @ 10 feet
4200
GPH @ 15 feet
3000
GPH @ 20 feet
1800
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
Adjustable
Float Off
Based on "On" Level
Manual Override
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
31 Pounds
Consumer Warranty
3 Years
Product Length
9.125 Inches
Product Width
5.5 Inches
Product Height
16 Inches
Additional Model Numbers
SHV40I-11, SHV40i
Reviews
(3)
iON Products SHV40i Reviews & Ratings

Ejector Pump
By Hayder A
Illinois
Purchased 07/21/2024 |
Review Posted 08/12/2024
This pump is great, easy to install and quiet. It arrived within two days and installed in 20 minutes.
Hayder A Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
None

ION Sump Pumps Are The Best
By Heidi S
California
Purchased 03/19/2023 |
Review Posted 04/11/2023
ION sump pumps are the best. Easy to install and worry free pumping of water.
Heidi S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, I'd Buy It Again

Sewerage Ejector
By Jeffrey R.
St. Charles, Illinois
Purchased 08/25/2017 |
Review Posted 09/18/2017
Previous sewer ejector lasted 7 years. Expect this one to outlast the old one. This unit is easy to install. Very quiet operating too which is a plus.
Jeffrey R. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Pros:
Quiet, Light Weight
Cons:
None noted so far
