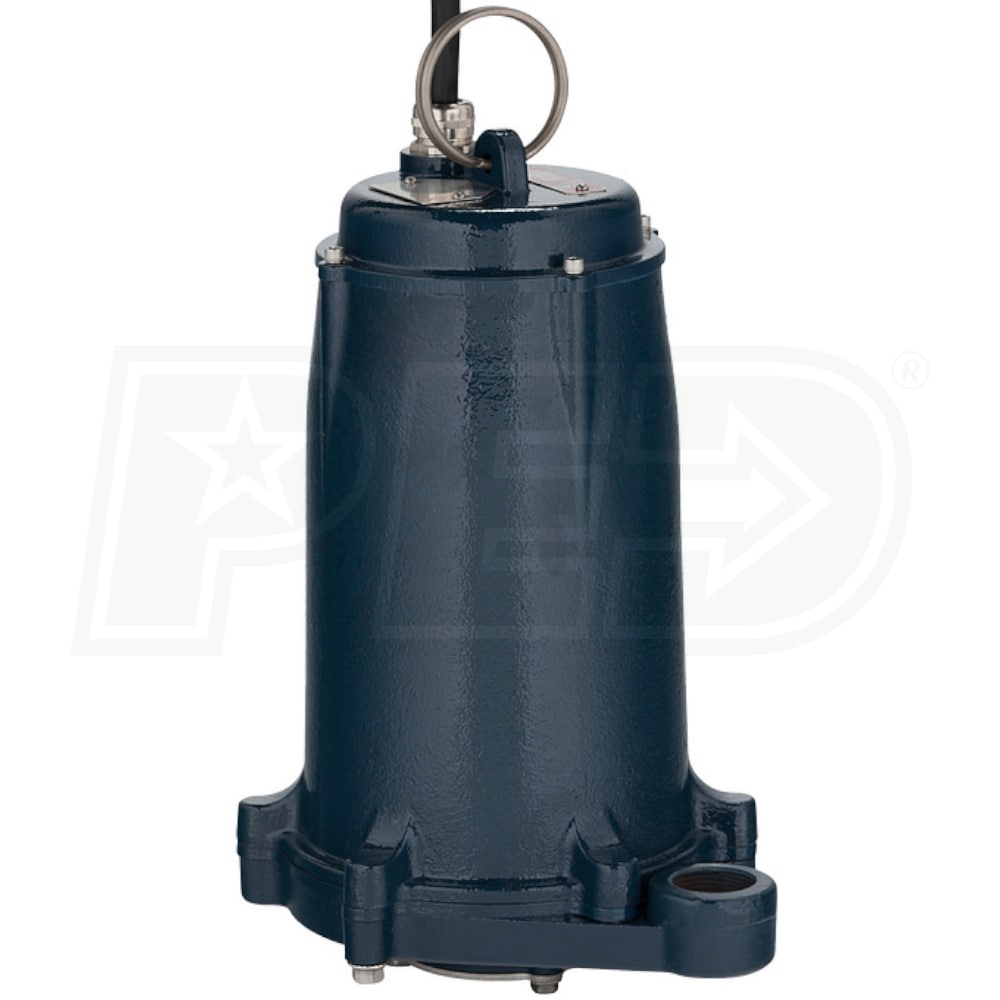

Franklin Electric IGP-A231-20* - 2 HP Cast Iron Automatic Grinder Pump w/ Brass Impeller & 20' Leads (Float Not Included) (230V)

Model:

515862

Write A Review
$2,105.60
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Franklin Electric IGP-A231-20* - 2 HP Cast Iron Automatic Grinder Pump w/ Brass Impeller & 20' Leads (Float Not Included) (230V)
Franklin Electric IGP-A231-20* - 2 HP Cast Iron Automatic Grinder Pump w/ Brass Impeller & 20' Leads (Float Not Included) (230V)
Model: 515862
$2,105.60
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

1920 Gallons

Switch Type

None

  • FPS - IGP-A231-20* - IGP-A Series Grinder Pump 208-230V
  • For the toughest residential and commercial wastewater applications
  • Provides up to 130' Max Head
  • Epoxy Powder Coated Cast Iron Construction
  • Provides excellent corrosion-resistance & durability
  • Automatic Design* (Mechanical Float Not Included)
  • Start/Run components encased in oil-free chamber requiring no control panel
  • 2 HP 3450 RPM Single Phase Motor (208-230V)
  • Built-in overload, over-current & over-temperature protection
  • Hardened Stainless Steel, Patented Cutter Design
  • Tight cutting clearances for superior grinding at 414,000 cuts per minute
  • Brass, 7-Vane, Angled Face Impeller
  • Balanced, non-clogging design for extended pump life
  • Carbon & Ceramic Mechanical Seal
  • Assures maximum protection for extended pump life
  • Stainless Steel Shaft w/ Upper/Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 1-1/4" FNPT Discharge
  • Vertical discharge design for easy installation
  • Includes GLK-SST Grinder Leg Kit (Not Displayed)
  • 20' Power Cord
  • 2-Year Limited Warranty
  • *Requires Float Switch - Sold Separately
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

515862
specs product image PID-153893
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
230 Volt
Running Amps
13.9
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Brass
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
1920
GPH @ 5 feet
1920
GPH @ 10 feet
1920
GPH @ 15 feet
1920
GPH @ 20 feet
1920
Discharge Port Size
1-1/4 Inch
Check Valve Included
No
Manual Override
Yes
Max Head
130 Feet
Submersible
Yes
Engine
Horsepower
2 HP
Overview
Weight
104 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.5 Inches
Product Width
9.3 Inches
Product Height
16.61 Inches
UPC
0010121149939
