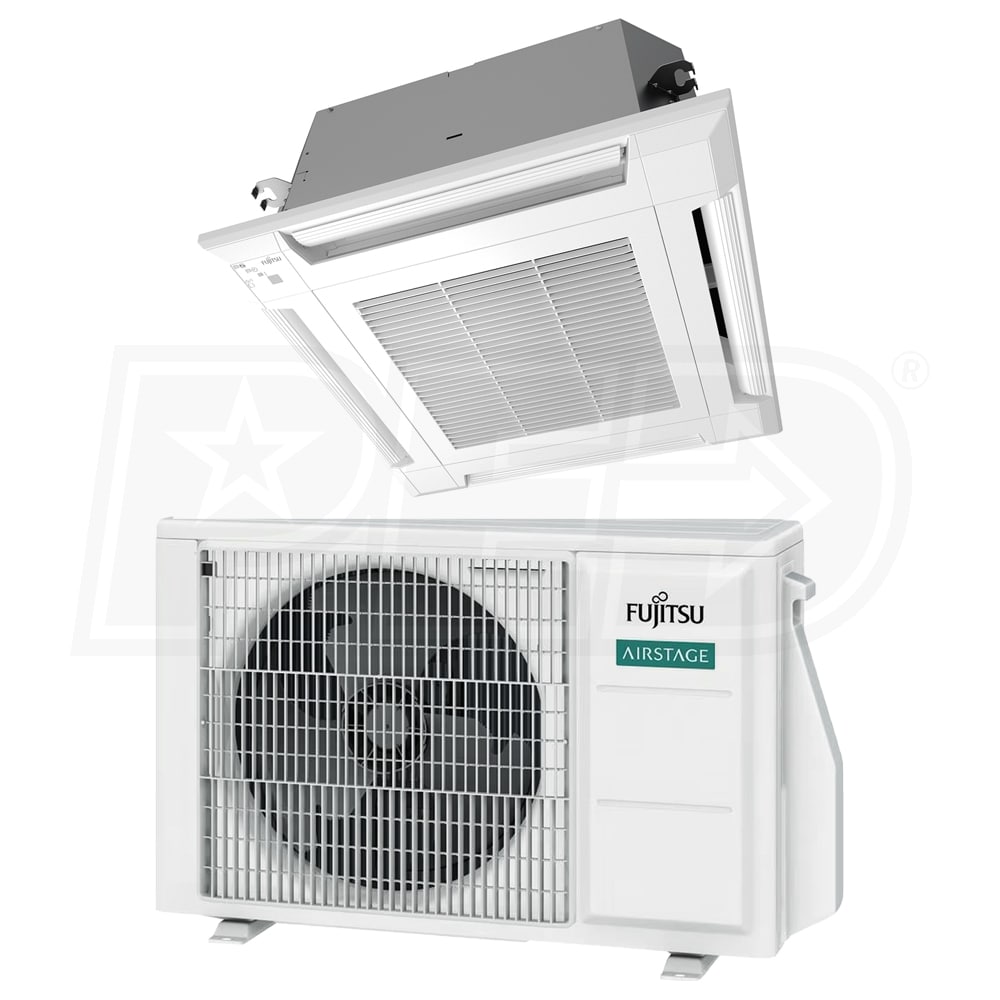

Fujitsu - 9k BTU Cooling + Heating - Compact Ceiling Cassette Air Conditioning System - 23.5 SEER2
Model:
09LUAS1C
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Inverter Technology
- The AOUH09LUAS1 outdoor condenser uses an inverter to drive the compressor, allowing it to match its output to the amount of heating or cooling required by a space, even as conditions change.
- Low Ambient Heating
- Fujitsu's low temperature heating technology allows this condenser to safely maintain its rated capacity in outdoor temperatures as low as 14 degrees Fahrenheit. The AOUH09LUAS1 can operate in heating mode in conditions as low as -5 degrees Fahrenheit.
- Timer Function
- This system offers seven day programmability with two unique on/off events on each individual day. This allows you to customize heating and cooling operations to suit your personal schedule, improving energy efficiency without compromising your home.
- (1) Fujitsu - 9k BTU - Outdoor Condenser - Single Zone Only (AOUH09LUAS1)
- (1) Fujitsu - 9k BTU - Compact Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (ACUH09LUAS1-NG)
- (1) Fujitsu - Compact Ceiling Cassette Grille (UTG-CCGFGA)
Fujitsu has been providing efficient and responsible heating and air conditioning solutions for decades. Their experience and dedication can be seen in the ACUH09LUAS1 ceiling cassette mini split indoor unit. The ACUH09LUAS1 is capable of cooling, drying, and heating operations, none of which will disrupt your home thanks to the low operating sound levels. Between the advanced filtration technology and the additional operating modes, the ACUH09LUAS1 is a choice that promotes health and comfort year round.
Product Includes
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Fujitsu - 9k BTU - Outdoor Condenser - Single Zone Only (AOUH09LUAS1)
- (1) Fujitsu - 9k BTU - Compact Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (ACUH09LUAS1-NG)
- (1) Fujitsu - Compact Ceiling Cassette Grille (UTG-CCGFGA)
09LUAS1C
General Information
Type
Ceiling Cassette
Product Line
Airstage LUAS
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Outdoor Unit Size
9000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Heating Capacity
12000 BTU
Maximum Air Flow
318 CFM
Minimum Air Flow
230 CFM
Minimum Operating Temperature
-5 F
Maximum Operating Temperature
14 F
Minimum Sound Level
28 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
33 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
23.5
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
13.6
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
11.8
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9.3 Amps
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 5/8 Inches
Product Width
22 7/16 Inches
Product Depth
22 7/16 Inches
Product Weight
33 Pounds
Shipping Weight
117 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
206579743
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
AOUH09LUAS1
General Information
Type
Outdoor Condenser
Product Line
Airstage LUAS
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Outdoor Unit Size
9000 BTU
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
48 dB
Low Ambient Heating
Yes
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Maximum Line Length
66 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 5/16 Inches
Product Width
31 7/16 Inches
Product Depth
11 7/16 Inches
Product Weight
70 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
ACUH09LUAS1-NG
General Information
Type
Ceiling Cassette
Product Line
Airstage LUAS
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wired
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9000
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
318 CFM
Minimum Air Flow
259 CFM
Minimum Sound Level
27 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
33 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
9 5/8 Inches
Product Width
24 7/16 Inches
Product Depth
24 7/16 Inches
Product Weight
33 Pounds
Shipping Height
10 7/16 Inches
Shipping Width
28 3/4 Inches
Shipping Depth
24 5/8 Inches
Shipping Weight
40 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
Overview
Product Category
Mini Split System Components
UTG-CCGFGA
General Information
Type
Grille
Product Line
Halcyon
Product Category
Mini Split System Components
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Overview
Product Category
Mini Split System Components
