On Sale

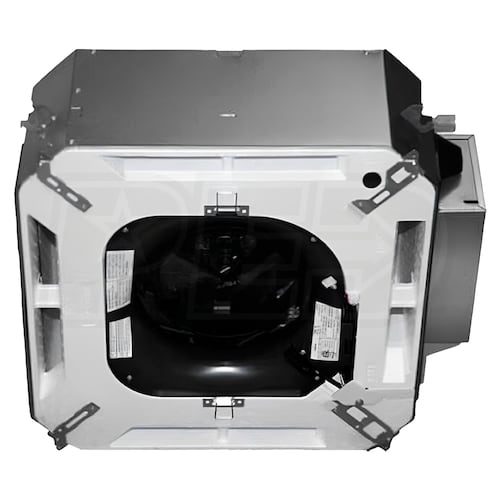

Fujitsu ACUH09LUAS1-NG
Fujitsu ACUH09LUAS1-NG
Hover to zoom
1 Of 5

Fujitsu - 9k BTU - Compact Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately

Model:

ACUH09LUAS1-NG

Write A Review
Not For Individual Sale
Try this product instead
Fujitsu - 9k BTU - Compact Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately
Fujitsu - 9k BTU - Compact Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately
Model: ACUH09LUAS1-NG
$693.50
Was $730.00
Not For Individual Sale
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    California residents see
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
    For more information go to: www.p65Warnings.ca.gov

    Specifications

    ACUH09LUAS1-NG
    specs product image PID-123345
    Overview
    Product Category
    Mini Split System Components
    General Information
    Type
    Ceiling Cassette
    Product Line
    Airstage LUAS
    Product Category
    Mini Split System Components
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
    Heating and Cooling
    Multi-Zone Compatible
    Yes
    Refrigerant Type
    R-410A
    Remote Control
    Wired
    Indoor Unit Size(s) Learn More
    Indoor Unit Size(s)
    Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
    9000
    Installation Location
    Indoor
    Performance
    Cooling BTU
    9000
    Cooling Capacity
    9000 BTU
    Maximum Air Flow
    318 CFM
    Minimum Air Flow
    259 CFM
    Minimum Sound Level
    27 dB
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
    33 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Dimensions
    Gas Connection Size
    3/8 Inch
    Liquid Connection Size
    1/4 Inch
    Product Height
    9 5/8 Inches
    Product Width
    24 7/16 Inches
    Product Depth
    24 7/16 Inches
    Product Weight
    33 Pounds
    Shipping Height
    10 7/16 Inches
    Shipping Width
    28 3/4 Inches
    Shipping Depth
    24 5/8 Inches
    Shipping Weight
    40 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    ISO Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
