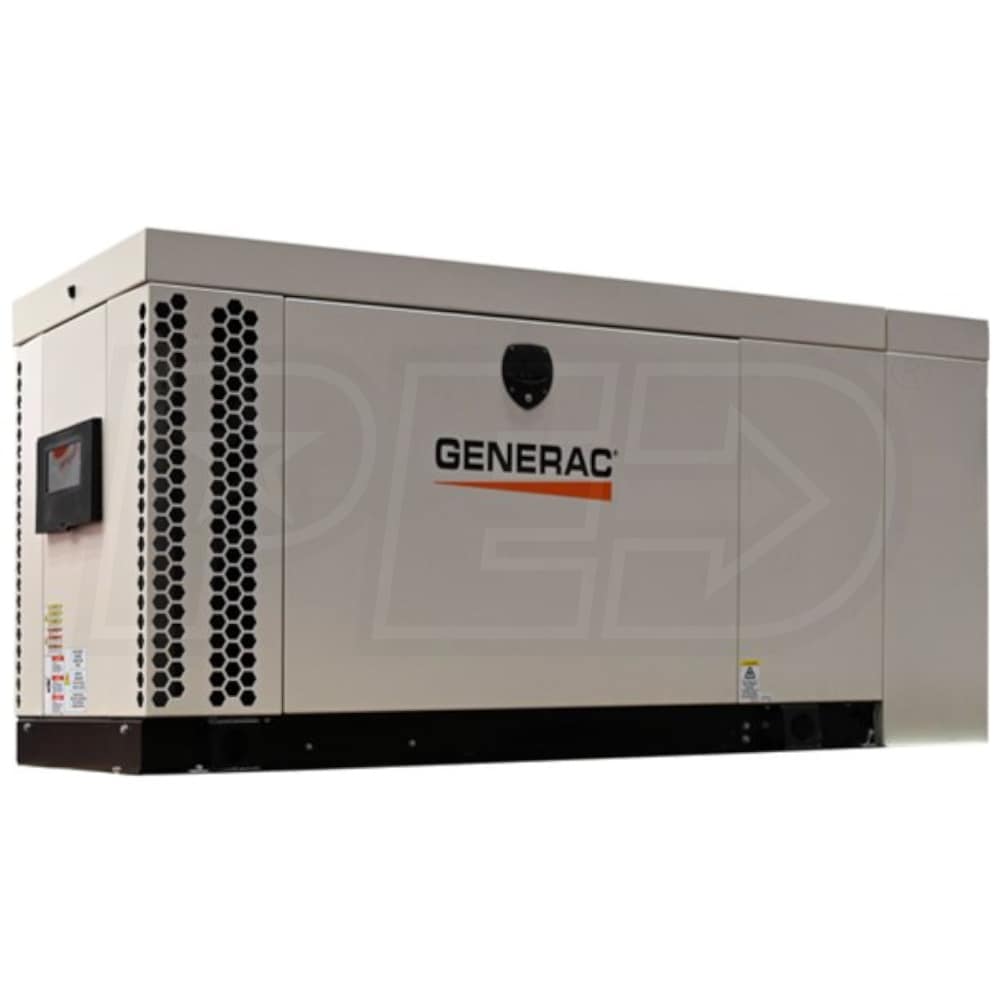

Generac Protector® RA Series 30kW Automatic Extended Run Standby Diesel Generator w/ Mobile Link™ (120/240V Single-Phase)
Model:
RA03022ADAL
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Standby (Liquid Cooled)
Run Watts
30,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
Diesel
Engine
Perkins
- Generac RA03022ADAL - Protector® RA Series Extend Run Diesel Standby Generator
- For residential and light commercial applications w/ 120/240V Single-Phase service
- Fully Automatic Operation When Paired w/ Generac ATS
- Generator is only compatible with Generac Auto Transfer Switches
- Mobile Linkâ„¢ and Fleet Standard Cellular Connectivity
- Monitor generator status on a smart phone, tablet or PC
- *Requires internet connection
- True Power Electrical Technology
- Less than 5% Total Harmonic Distortion (THD) for utility grade power
- Automatic Digital Voltage Regulation (+/-1%)
- Allows for faster response time & maximum motor starting ability
- Perkins 2.2L In-Line Turbocharged 4-Cylinder Diesel Engine
- Fuel efficient design runs at 1800 RPM for long engine life
- 250-Hour Oil service interval for lower maintenance costs
- Integrated, Extended-Run, 130-Gallon Double-Wall Base Fuel Tank
- Provides up to 100 hours of run time @ 1/2 load
- Power Zone 410 Controller
- LCD Display provides service & maintenance intervals
- Optional NFPA 110 Controller Kit (Not Included)
- Quiet-Test™
- Runs at a lower RPM, is quieter and consumes less fuel
- Isochronous Electronic Governor Control
- Precise load response & voltage/frequency regulation (±1%)
- Corrosion-Resistant Aluminum Enclosure
- Enhanced durability, ideal for coastal & salt-water environments
- Sound dampening design limits sound pressure to a low 70dB(A)
- Code Ready - Compatibility With A Variety Of Environments
- External Vent & Fill, UL/CUL 142-Listed Double Wall Based Tank
- UL/CUL 2200-Listed Generator - 5-Year / 2000-Hour Limited Warranty
^Please Note - Requires Loading Dock or Forklift For Delivery^
BASE TANK IS NOT DISPLAYED IN PRODUCT IMAGE
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
RA03022ADAL
Overview
Product Category
Generator - Standby
Weight
2463 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
96 Inches
Product Width
35 Inches
Product Height
73.8 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
30000 Watts
Fuel Type
Diesel
Rated Amps
125 Amps
Diesel Fuel Consumption @ 50% Load
1.37 gallons/hr
Tank Size
138.5 Gallons
Run Time @ 50% Load
100 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65 Test (70 Run) dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (700 CCA)
Enclosure
Aluminum
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Perkins
Starting System
12v Auto Start
CC
2200 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
