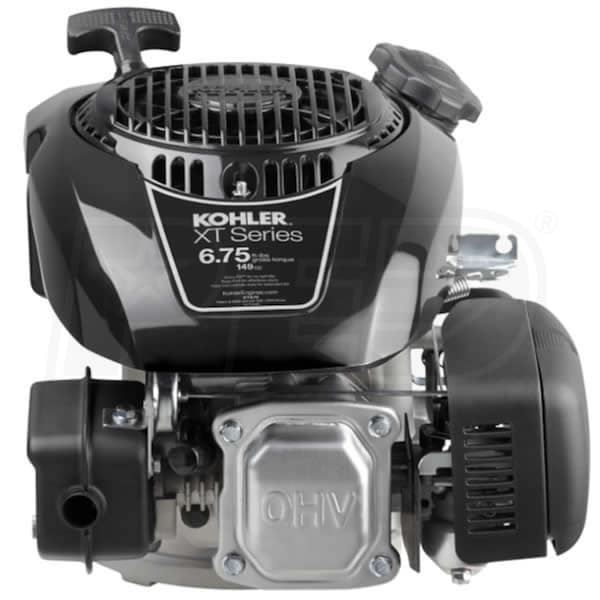

Kohler XT675 149cc OHV Vertical Engine, 25mm x 2.66" Crankshaft, Tapped 3/8"-24
Model:
PA-XT675-3016
+
Share This Product
Features
- Model# XT675-3016, 25mm x 2.66" Crankshaft, Tapped 3/8"-24
- KOHLER XT675 Single Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
- For use on walk behind mowers and utility equipment
- Cool-Running OHV Design Means Your Engine Will Last
- Avoid costly trips to the repair shop
- Tough, Cast-Iron Cylinder Liner
- Engine will last longer in harsh mowing conditions
- Front Tube Outlet Muffler
- Quiet operation is ensured
- Reduce Noise
- Muffler that directs exhaust away from you
- Consistent-Cut™ Technology
- Higher-quality cut
- Accu-Fill™ Technology
- Easy fill without spilling
- Large fuel tank for less frequent filling
- Easy-Pull™ Technology
- Easy starting
- Smart-Choke™
- Easy, no-prime starting
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
PA-XT675-3016

Engine
Engine Series
XT Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
23.8 Lbs
CC
149 CCs
Max Torque
6.75 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.6 Inches
Stroke
1.8 Inches
Compression Ratio
9.2:1
CARB
No
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Dual Element
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 2.66 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
2.66"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
24 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.4 Inches
Product Width
14 Inches
Product Height
10.5 Inches
Dimensions
14.4 x 14 x 10.5
Reviews
(2)
Kohler Engines PA-XT675-3016 Reviews & Ratings
Wow, Just Amazing
By Anthony T.
Oklahoma
Review Posted 09/22/2022
I purchased one off of that buddy and he has not had it running for over a year it took me cleaning the air filter putting new gas in there and cleaning it a little bit. 5 pulls and it started right up. Now it starts with 1 pull every time,
Quiet and mellow. God I, love this Kohler 6.75xt series.
Quiet and mellow. God I, love this Kohler 6.75xt series.
Anthony T. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Id Buy It Again
My First Kohler
By Robert T.
Riverview, Florida
Review Posted 05/22/2019
I have this engine currently on a Lawn-Boy deck. I had only one issue with hard starting, and that was due to lack of maintenance with the carb jet getting clogged. These engines are a true "one-pull" start. They have a heat operated choke and it performs flawlessly. It's quiet than flathead B&S and Tecumseh's for sure. I honestly have zero complaints with this engine, and would consider it for any repower project in the future. No plastic carb's here either.
Robert T. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Quiet, Reliable, High Quality
