Little Giant 16G-V231-20 - 1 HP Automatic Grinder Pump w/ Piggyback Vertical Float (230V)

Model:

509814

Write A Review
$1,009.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

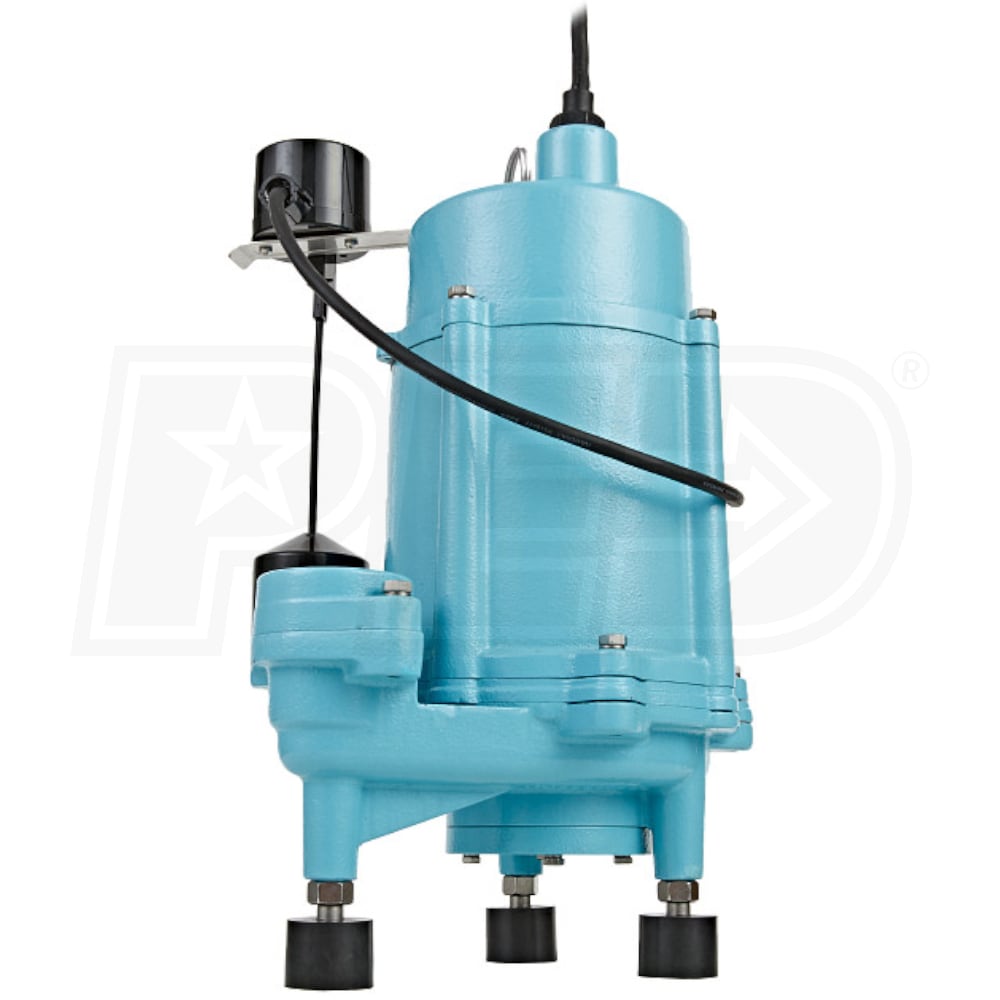

Little Giant 16G-V231-20 - 1 HP Automatic Grinder Pump w/ Piggyback Vertical Float (230V)
Little Giant 16G-V231-20 - 1 HP Automatic Grinder Pump w/ Piggyback Vertical Float (230V)
Model: 509814
$1,009.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

3000 Gallons

Switch Type

Vertical

  • Little Giant 16G-V231-20 - 1 HP Automatic Grinder Pump (230V)
  • Designed for residential and light commercial applications
  • Ideal replacement for effluent/sewage pumps that bind and clog
  • Epoxy Powder Coated Cast Iron Construction
  • Provides excellent corrosion-resistance & durability
  • 27-Stationary & 8-Rotating Blade Cutting Mechanism (440 Stainless Steel)
  • 3450 RPM design provides over 700k cuts per minute
  • Easily handles flushables and other debris
  • Piggyback Vertical Float Switch
  • Provides reliable automatic operation
  • Heavy-Duty 1 HP Single-Phase Motor
  • Class F motor for optimal power
  • Capacitor start, capacitor run design w/ internal overload protection
  • Silicone Carbide Mechanical Seal
  • Provides lower thermal expansion and higher abrasion resistance
  • Up to 6X longer life compared to carbon ceramic seals
  • 420 Stainless Steel Shaft w/ Upper/Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 1-1/4" Discharge w/ 2" NPT Adapter
  • Compatible with grinder and effluent/sewage applications
  • 20' Power Cord
  • Replaceable design, sealed at connection for easier service
  • Non-Skid, Adjustable Legs
  • Helps keep the pump level and in-place during operation
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

509814
specs product image PID-153024
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Stainless Steel
Handles Solids
Yes
Maximum PSI
23
Float Type
Vertical Float

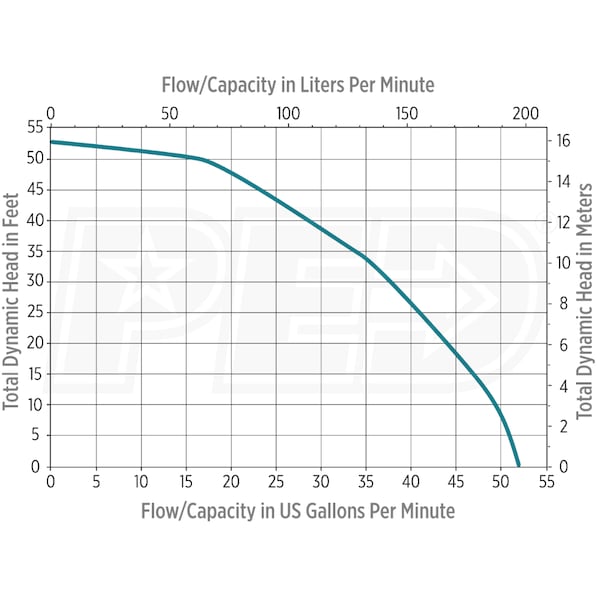

GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2976
GPH @ 20 feet
2976
Discharge Port Size
1-1/4 Inch and 2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
1 HP
Overview
Product Category
Sump Pump
Weight
78 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
11.33 Inches
Product Width
10.03 Inches
Product Height
18.4 Inches
UPC
010121004092
