Features
Style
Refrigerated
Dryer Voltage
115V 1-Phase
Air Dryer CFM
20
- Excellent Performance
- Even where ambient & inlet temperatures are elevated
- Nominal air pressure of 100 PSI; 232 PSI maximum
- Energy Efficient Sizing
- Matches the compressor's displacement, saving energy

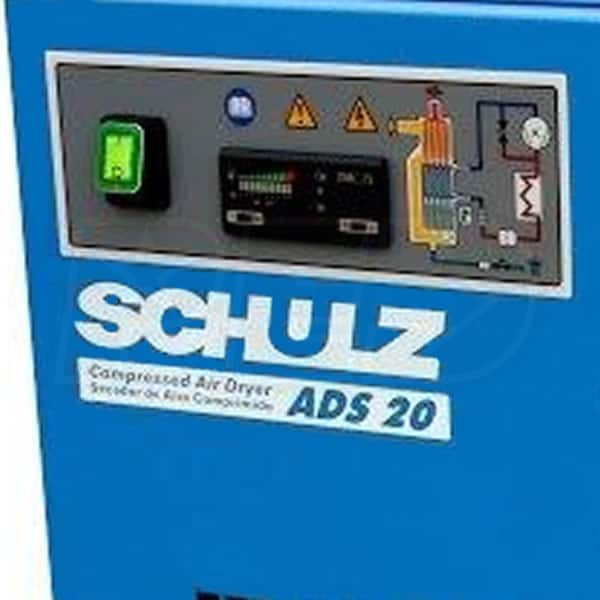

- Electronic Controller
- Digitally shows temperature & dew point
- Controls the drain valve through a timer
- Controls the condenser fan through a probe
- High-Efficiency Compressor
- Circulates the refrigerant through the system
- Totally New Design
- Delivers high dependability & low power consumption
- Quick disconnect automatic drain valve doesn't need special tools
- Requires a 115V, single phase circuit
- Environmentally Friendly Refrigerant
- R134a is effective & easier on the environment
- Compact Footprint
- Conveniently sized 18-11/16" x 14-9/16" x 18-11/16"
- Weighs only 55 pounds; easy to install
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ADS 20

General Information
Product Category
Air Compressor Accessories
Filter
High Efficiency
Yes
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
20
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
232
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
100
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
113
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Dry Amp Draw
15.44
Overview
Product Category
Air Compressor Accessories
Weight
55 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
19 Inches
Product Width
15 Inches
Product Height
19 Inches
Power Type
Electric
Additional Model Numbers
ADS-20, ADS 20
Reviews
(1)
Schulz ADS 20 Reviews & Ratings

Works As Advertized
By Reno K.
Tennessee
Purchased 05/28/2024 |
Review Posted 07/17/2024
Have it on our paint booth compressor and we have zero moisture in our air lines.
Reno K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, I39d Buy It Again
Cons:
None
How-To Articles
How to Pick the Perfect Compressed Air Dryer
Ever heard the saying an ounce of prevention is worth a pound of cure? Well, if...
What an Air Line Filter is and How it Works
Without an air line filter - water, oil, and dirt can cause major damage to pne...
How to Pick the Perfect Refrigerated Air Compressor Dryer
Refrigerated Dryers use a cooling system similar to that of a home air conditio...
Manuals
ADS 20

Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

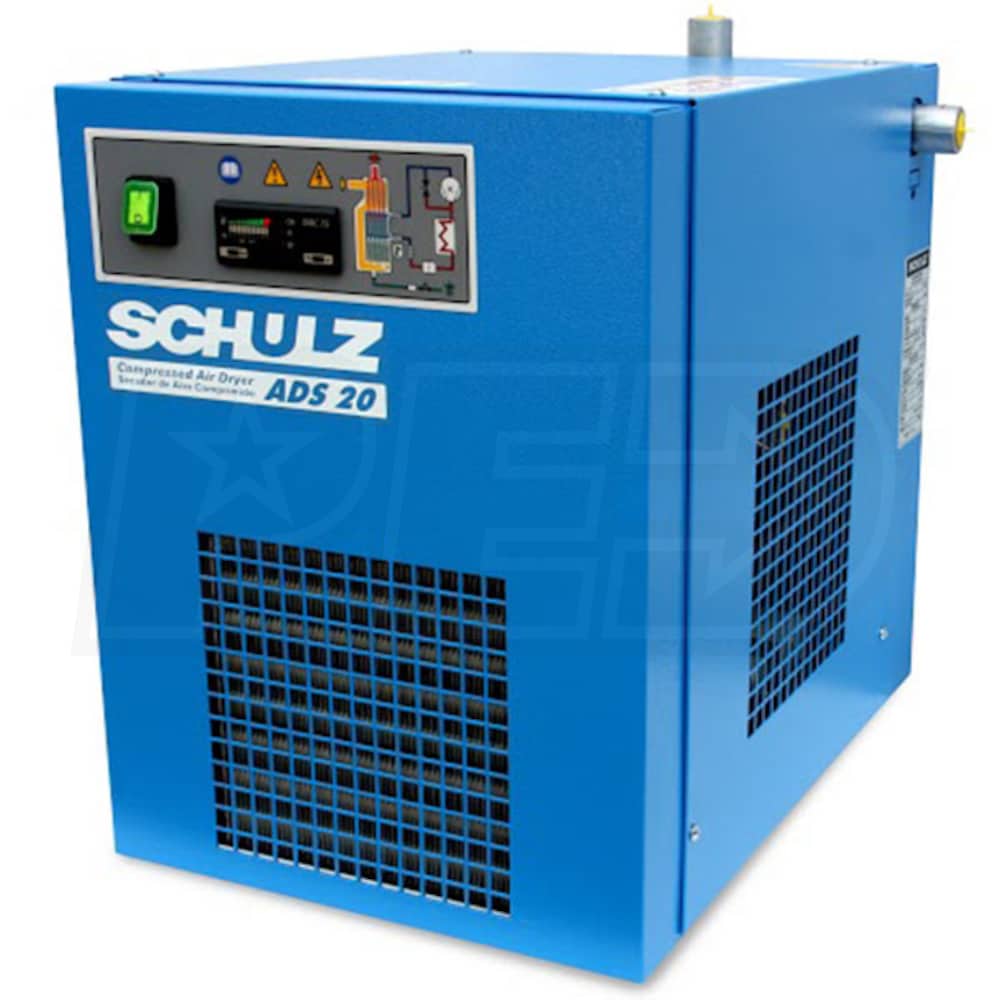

Schulz ADS 20 Non-Cycling Refrigerated Air Dryer (20 CFM 115V 1-Phase)
