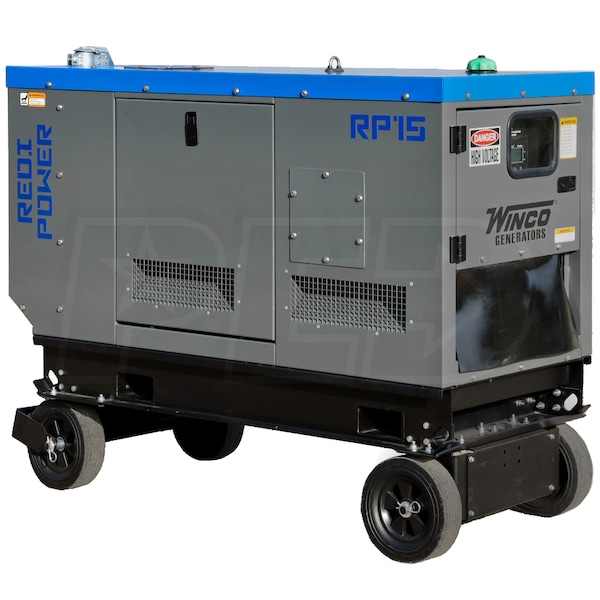

Winco RP15 - 12,500 Watt Electric Start Industrial Diesel Generator (CARB)

Model:

RP15

Write A Review
$11,800.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Winco RP15 - 12,500 Watt Electric Start Industrial Diesel Generator (CARB)
Winco RP15 - 12,500 Watt Electric Start Industrial Diesel Generator (CARB)
Model: RP15
$11,800.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

12,500 Rated Watts

Surge Watts

15,000
Starting Watts

Fuel

Diesel

Engine

Yanmar

    ***PLEASE NOTE - Dolly Kit is Sold Separately***
  • Winco RP15 - 12,500 Watt Industrial Mobile Diesel Generator
  • Designed to bring a lot of power in a compact footprint
  • Electric Start (Battery Not Included)
  • Allows for quick and reliable starting

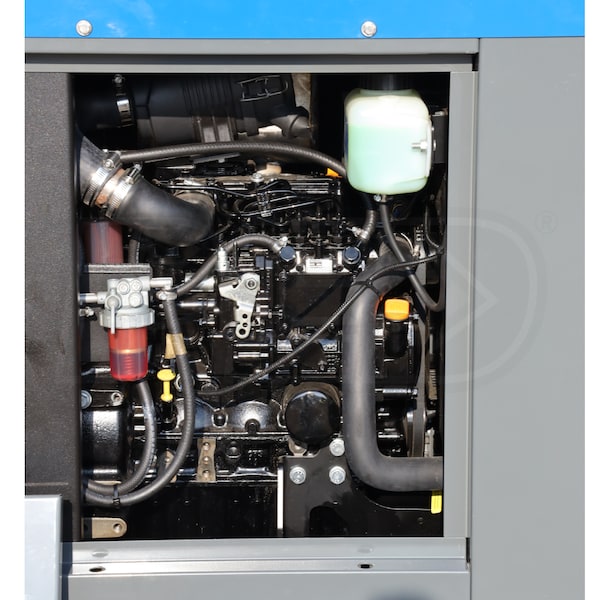

  • 993cc YANMAR 3-Cylinder Liquid-Cooled Diesel Engine (EPA Tier 4 Final, CARB)
  • Advanced vibration reduction and high-strength materials for demanding applications
  • Refined combustion process for reduced emissions and improved performance
  • Low Oil Protection
  • Provides added safety to keep your generator running
  • Stamford Generator End (<5% THD)
  • Brushless industrial generator end with automatic voltage control (+/- 1% AVR)
  • 15 Gallon Diesel Fuel Tank w/ Fuel Gauge
  • Provides up to 23 hours of run time @ 50% load
  • Provides up to 11.45 hours of run time @ 100% load

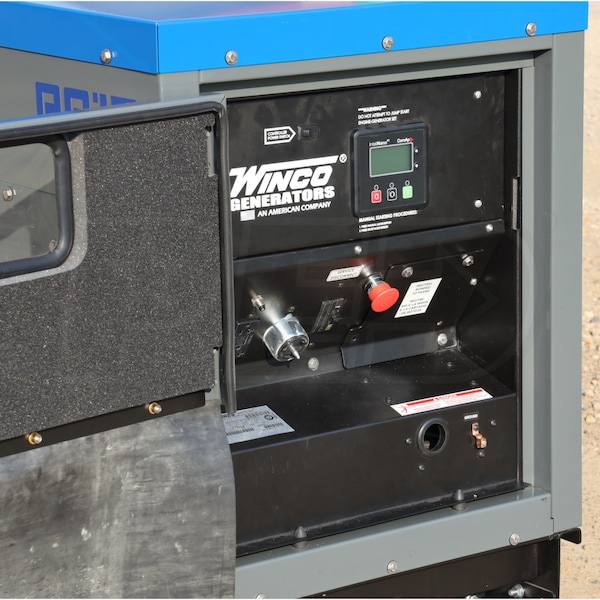

  • Standard E-STOP
  • Makes it easy to stop the generator in the event of an emergency
  • Double Circuit Breaker Protection (Generator & Receptacle)
  • Shuts the engine down to prevent overcurrent damage
  • Standard Receptacle
  • (2) NEMA 5-20 20A DUPLEX (GFCI)
  • (1) 120/240V-50A C6369
  • Oil Field Skid w/ Built-In Lifting Points
  • Single-point lifting eye & standard fork lift pockets
  • Makes this generator easier to transport and position
  • 1-Year / 2000 Hour Warranty
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
RP15
specs product image PID-161674
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
998 Pounds
CARB Compliant
Yes
Certification
EPA, CARB, TIER IV FINAL
Made in USA
Yes
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
62 Inches
Product Width
33 Inches
Product Height
45 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
12500 Watts
Surge Watts
15000 Watts
Fuel Type
Diesel
Rated Amps
50 Amps
Diesel Fuel Consumption @ 50% Load
.65 gallons/hr
Portability Kit
Sold Separately
Tank Size
15 Gallons
Run Time @ 50% Load
23 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Included
Circuit Breaker Size
60 Amps
Grade Type
Professional
CO Sensing
No
Low THD
Yes
Engine
Engine Brand
Yanmar
Starting System
12-Volt Button Start
CC
993 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
2
CS6364/5 - 50-Amp Twistlock
1
